EGR Valve Replacement

  1. Disconnect the EGR valve connector (A).

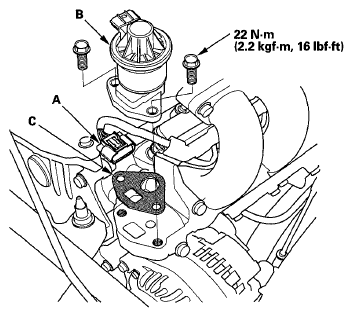

    Fig 1: EGR Valve, Connector & Gasket With Torque Specifications
    G05953227Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the EGR valve (B).
  3. Install the parts in the reverse order of removal with a new gasket (C).
