Home >> Honda >> 2011 >> Fit L4-1.5L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relay Box >> Application and ID >> Under-Dash Fuse/Relay Box - Connector-To-Fuse/Relay Box Index
April 5, 2026: LEMON Manuals is launched! Read the announcement.

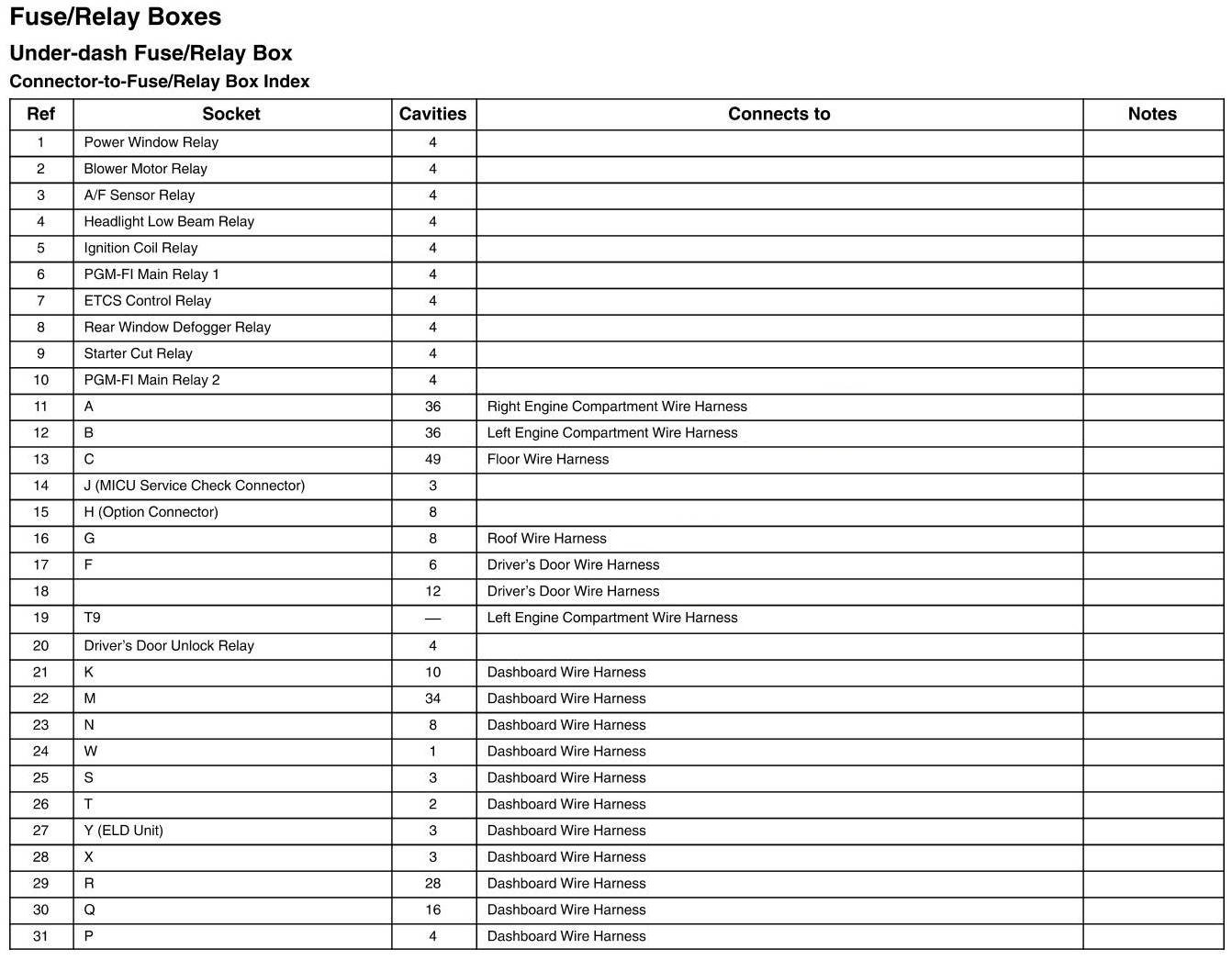

Under-Dash Fuse/Relay Box - Connector-To-Fuse/Relay Box Index
