Audio System: Navigation

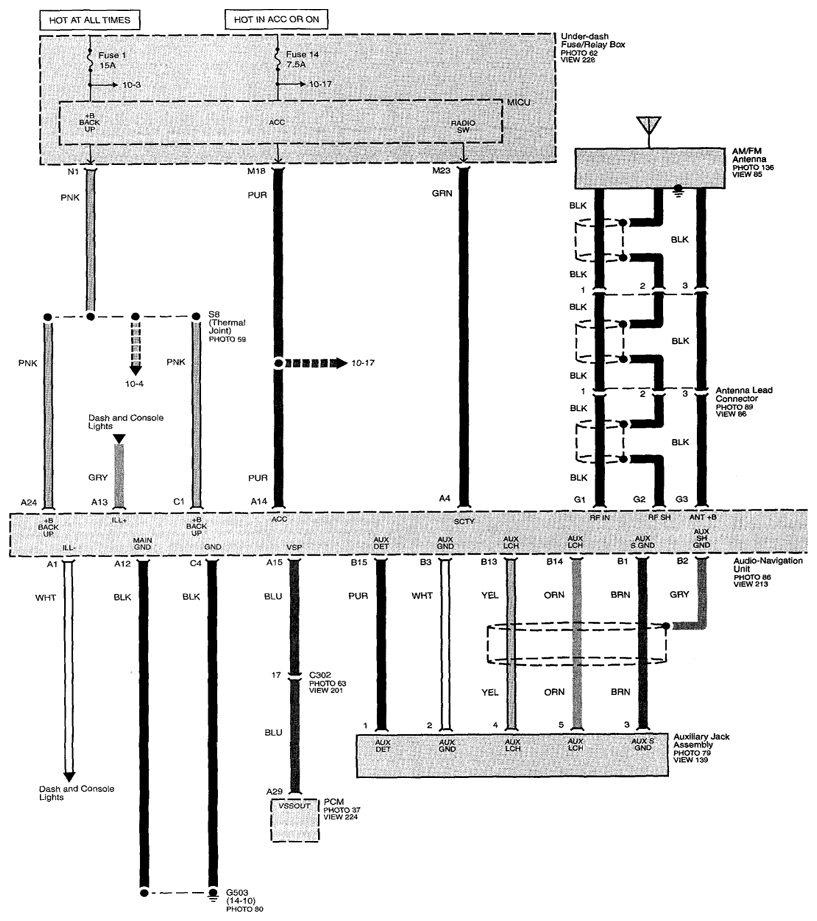

Fig 1: Audio System Circuit Diagram - Navigation Circuit Diagram (Page 150-6)
G07757285

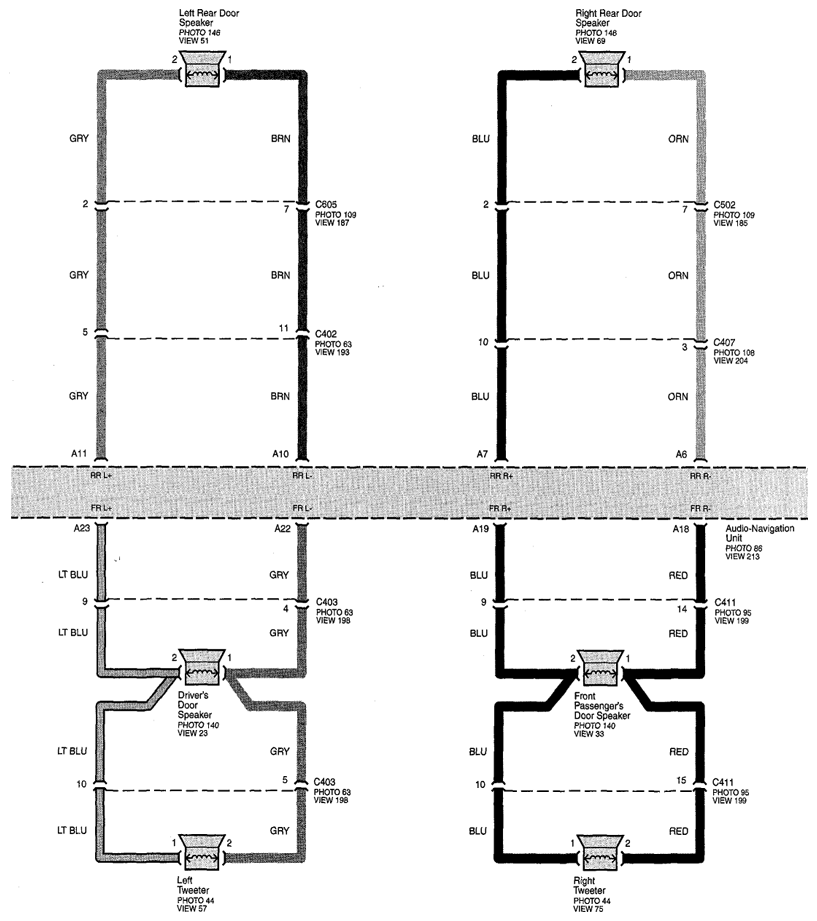

Fig 2: Audio System Circuit Diagram - Navigation Circuit Diagram (Page 150-7)
G07757286

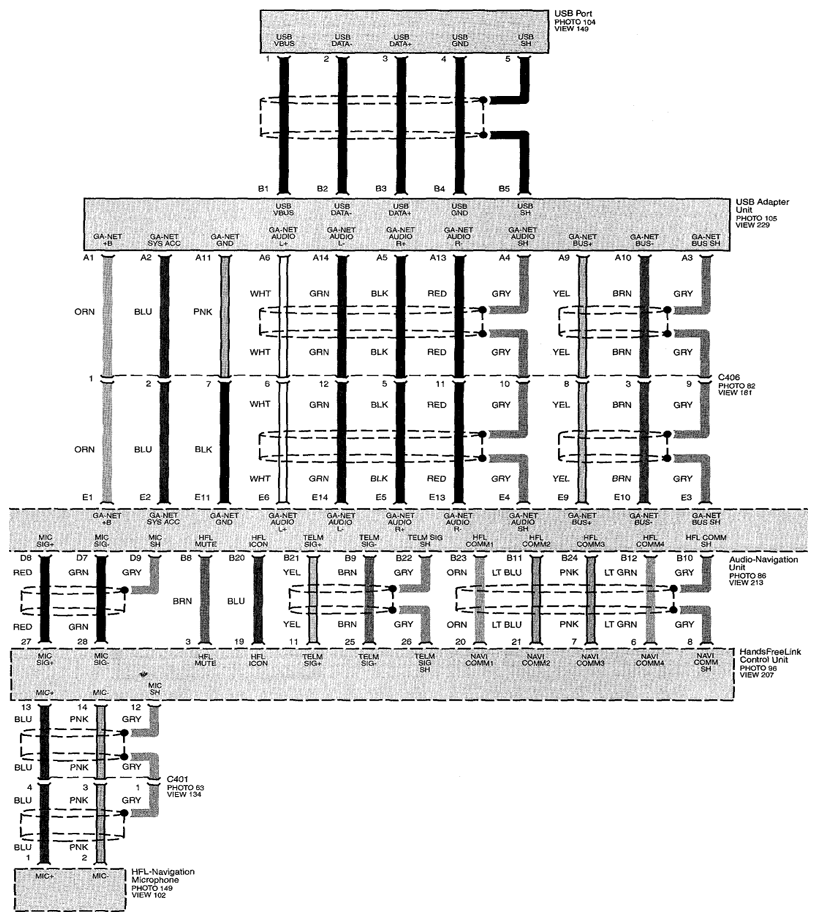

Fig 3: Audio System Circuit Diagram - Navigation Circuit Diagram (Page 150-8)
G07757287

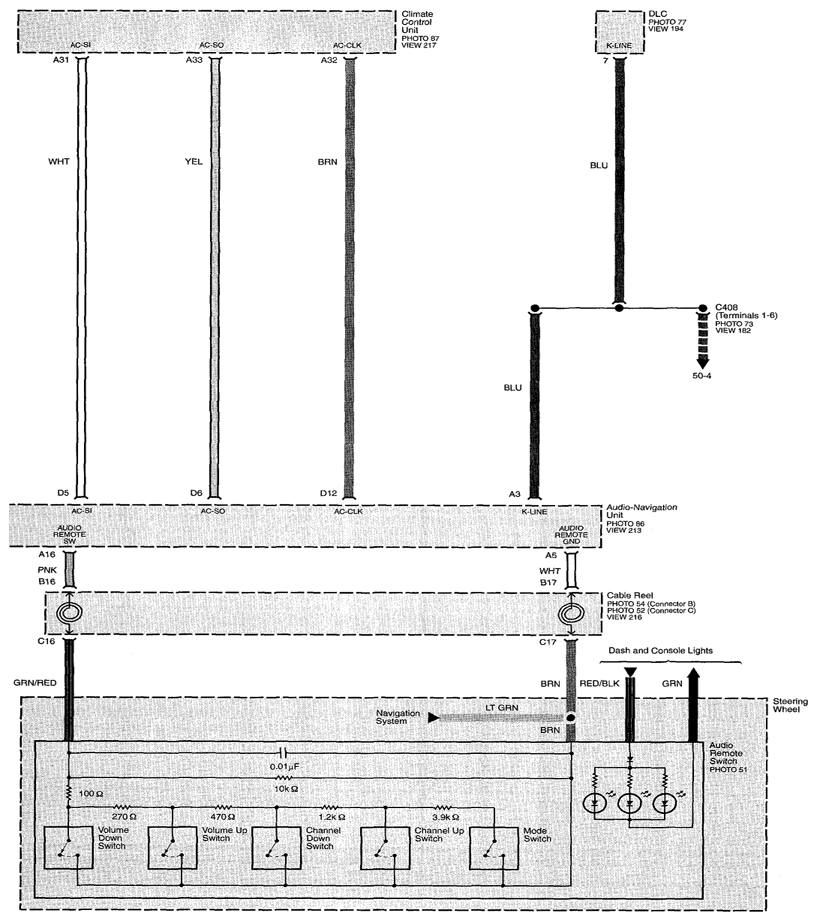

Fig 4: Audio System Circuit Diagram - Navigation Circuit Diagram (Page 150-9)
G07757288
