Power Distribution

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

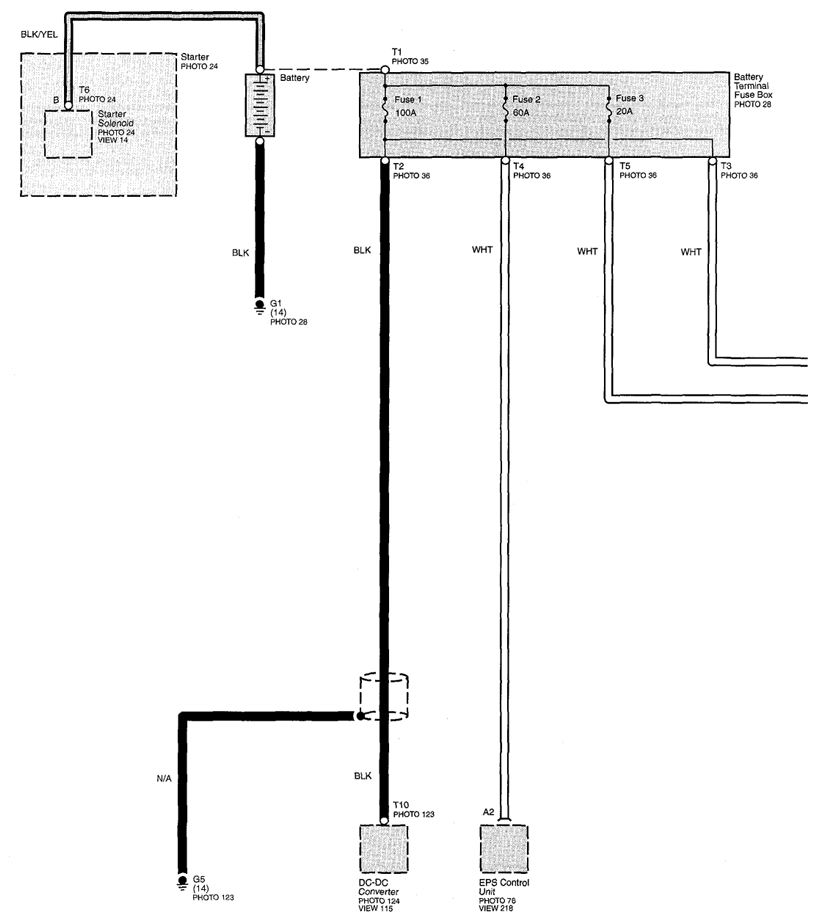

Fig 1: Power Distribution Circuit Diagram (Page 10)

G07757091

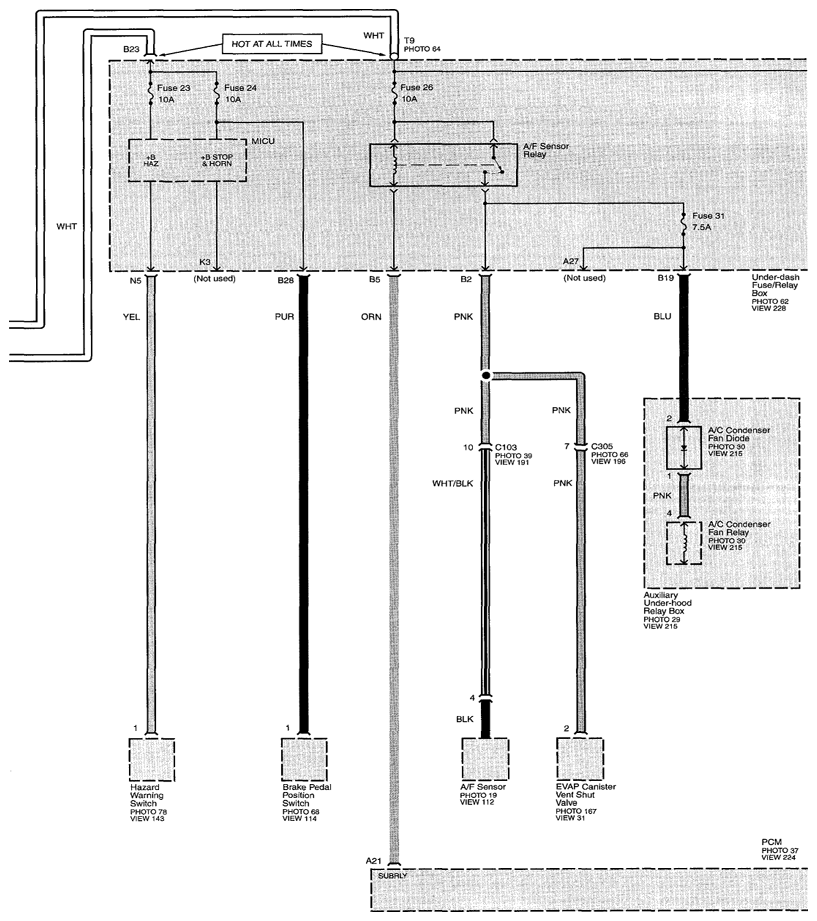

Fig 2: Power Distribution Circuit Diagram (Page 10-1)

G07757092

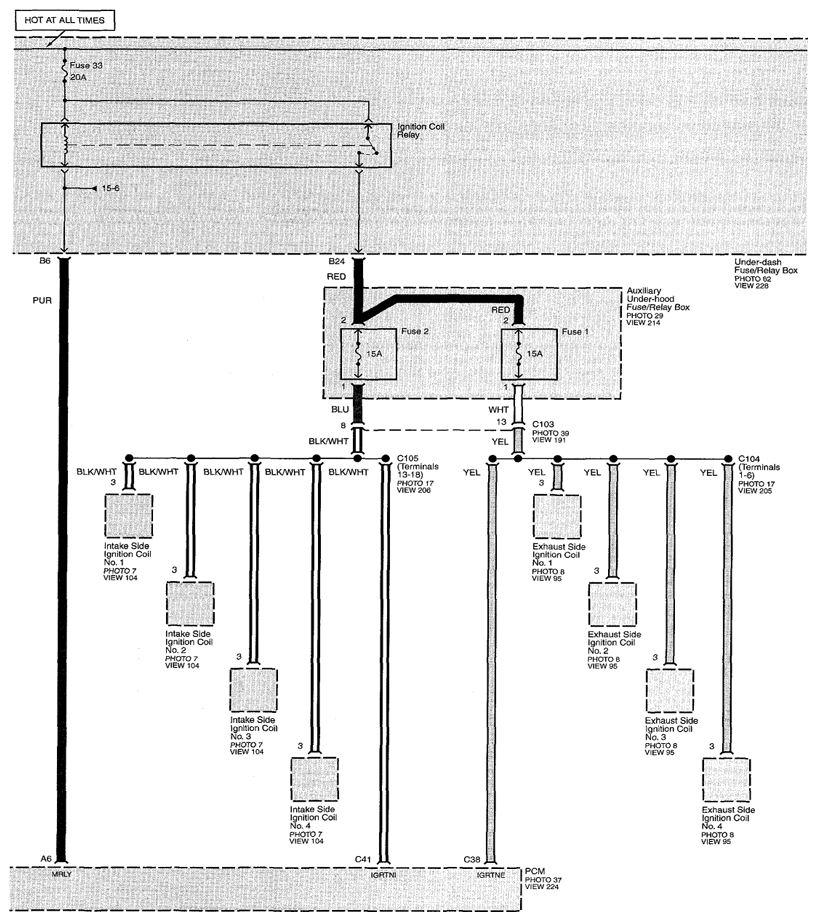

Fig 3: Power Distribution Circuit Diagram (Page 10-2)

G07757093

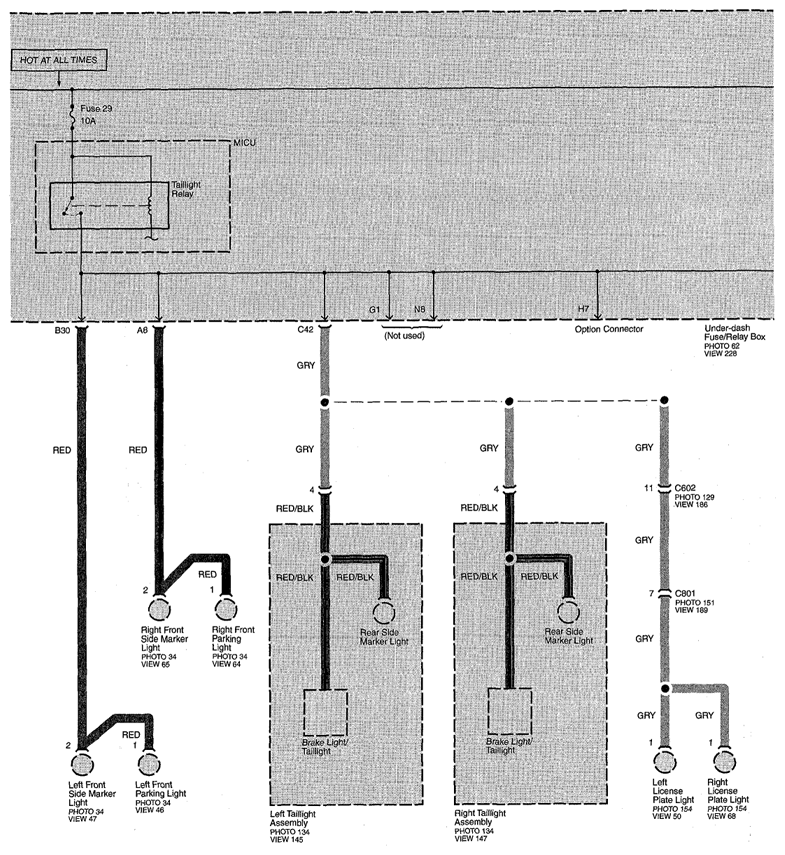

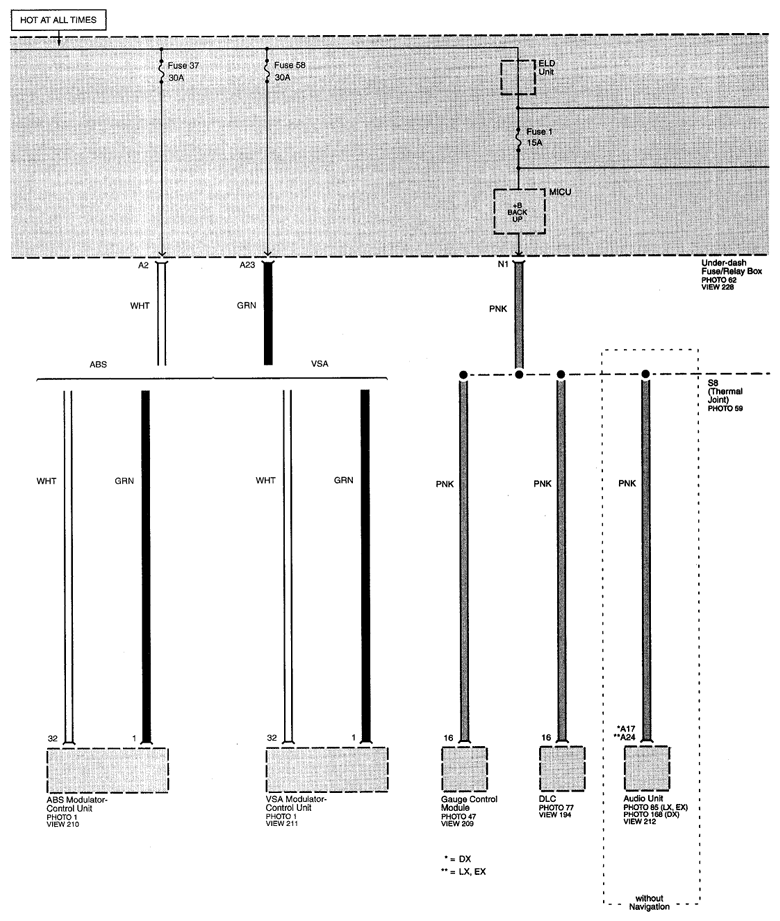

Fig 4: Power Distribution Circuit Diagram (Page 10-3)

G07757094

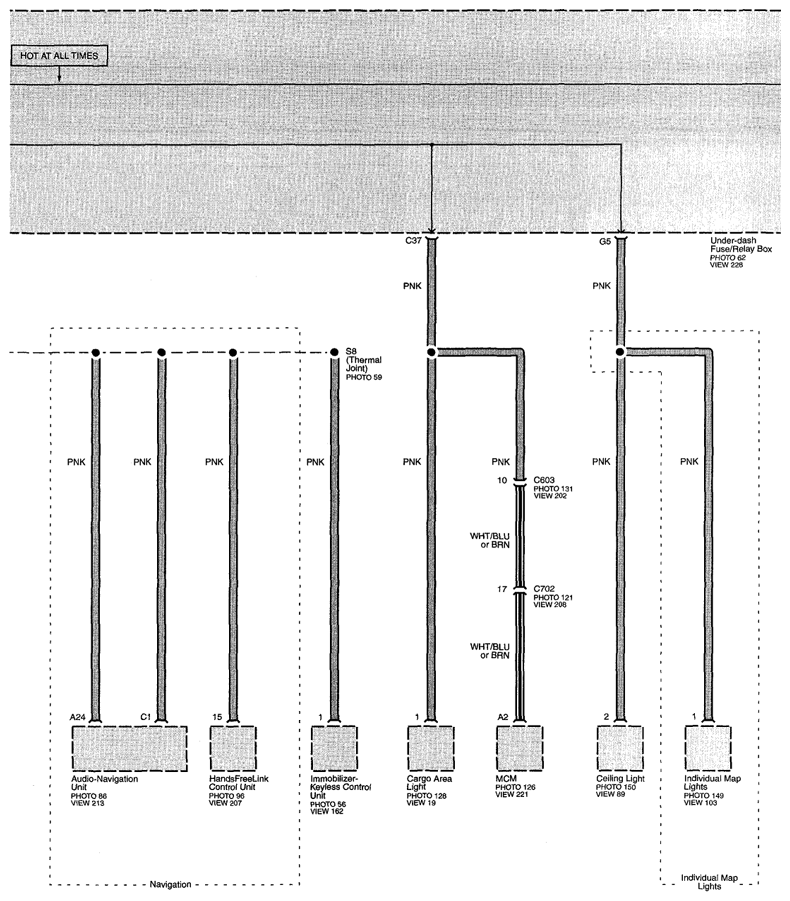

Fig 5: Power Distribution Circuit Diagram (Page 10-4)

G07757095

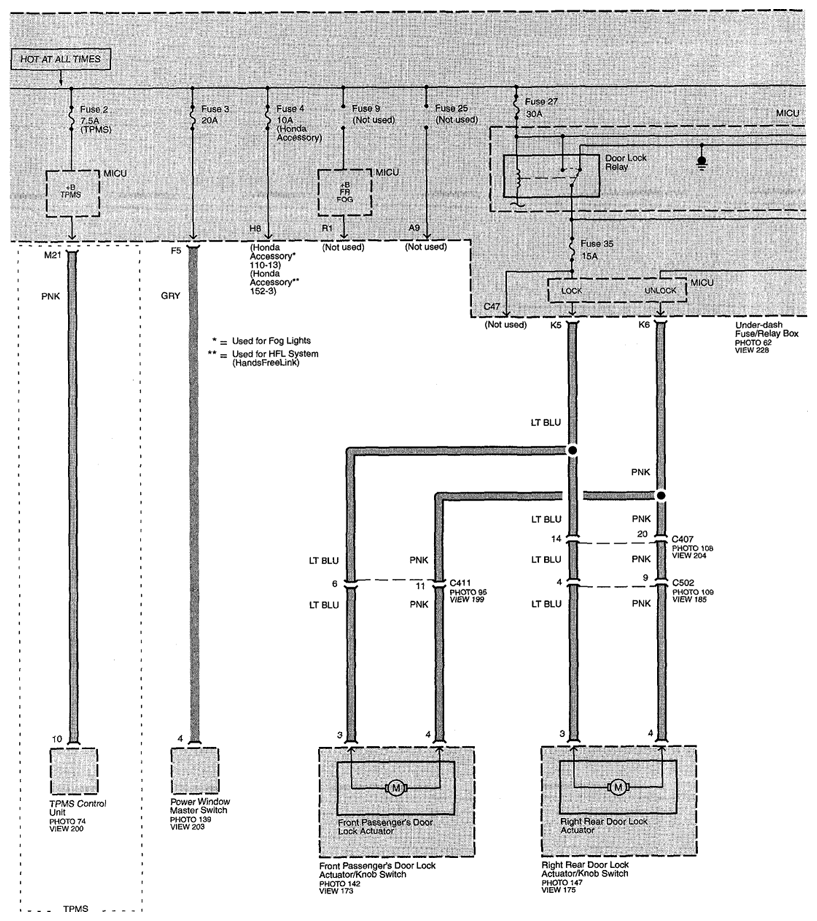

Fig 6: Power Distribution Circuit Diagram (Page 10-5)

G07757096

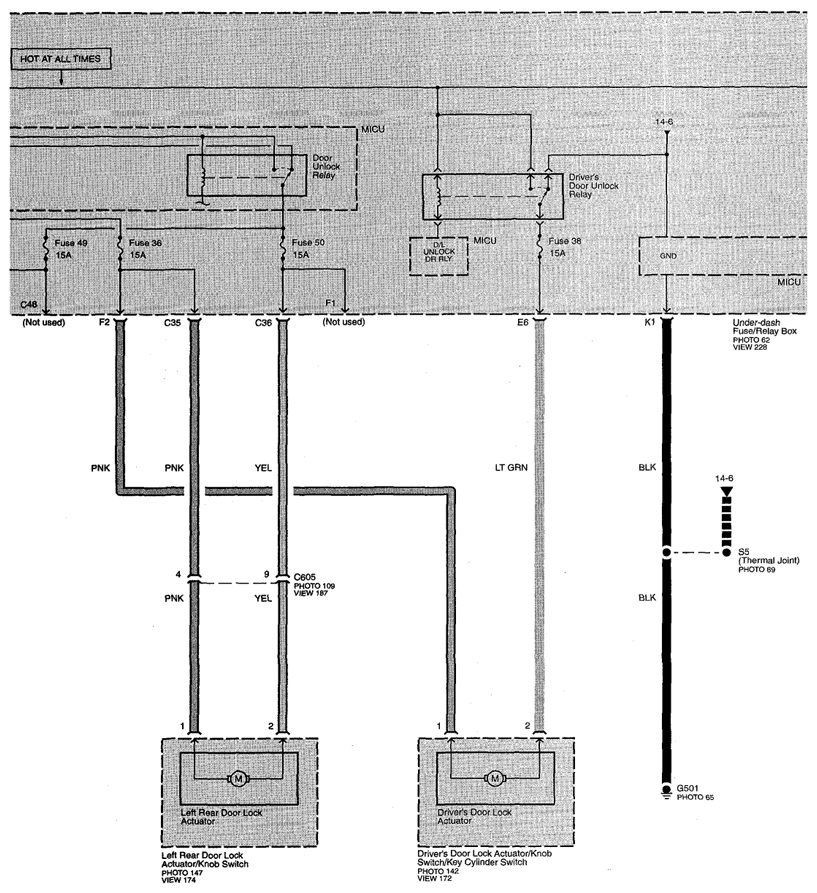

Fig 7: Power Distribution Circuit Diagram (Page 10-6)

G07757097

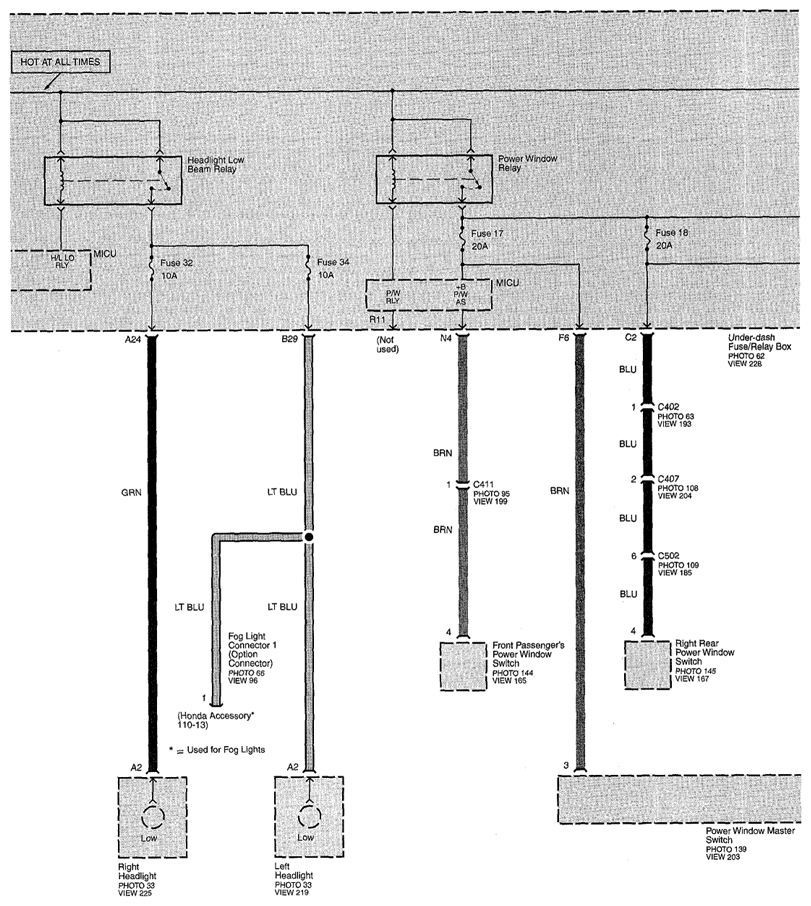

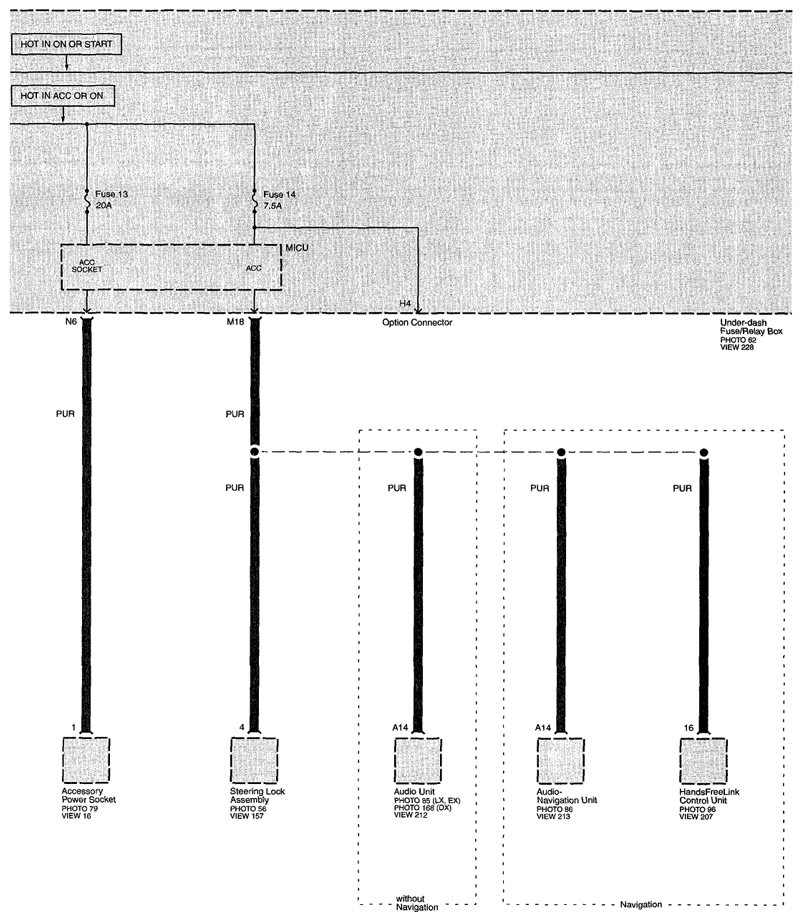

Fig 8: Power Distribution Circuit Diagram (Page 10-7)

G07757098

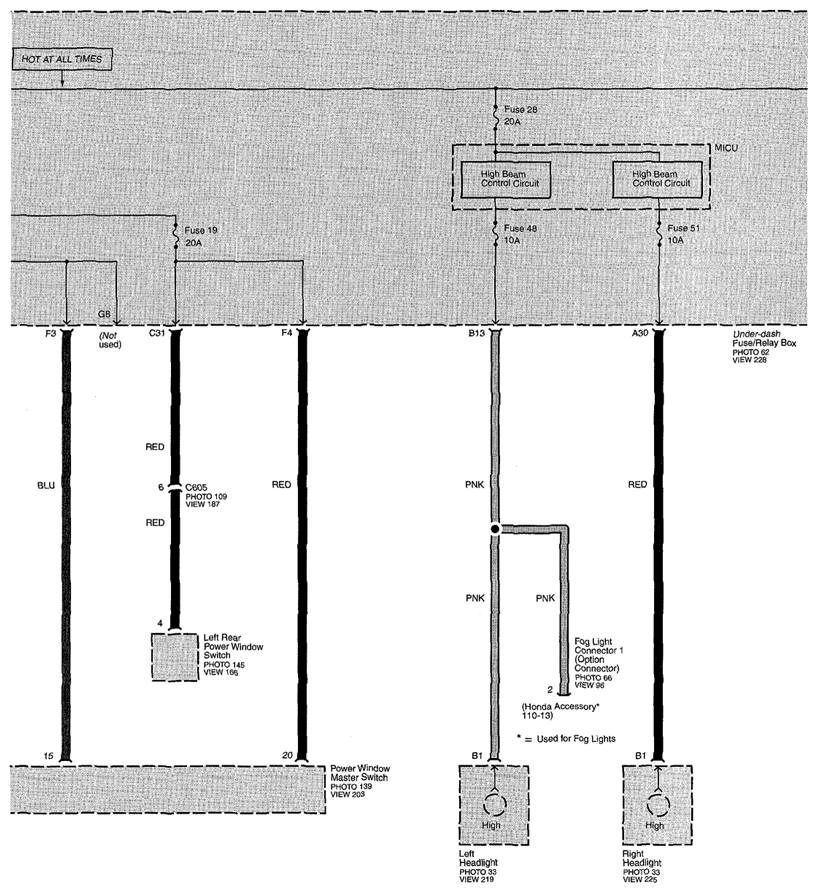

Fig 9: Power Distribution Circuit Diagram (Page 10-8)

G07757099

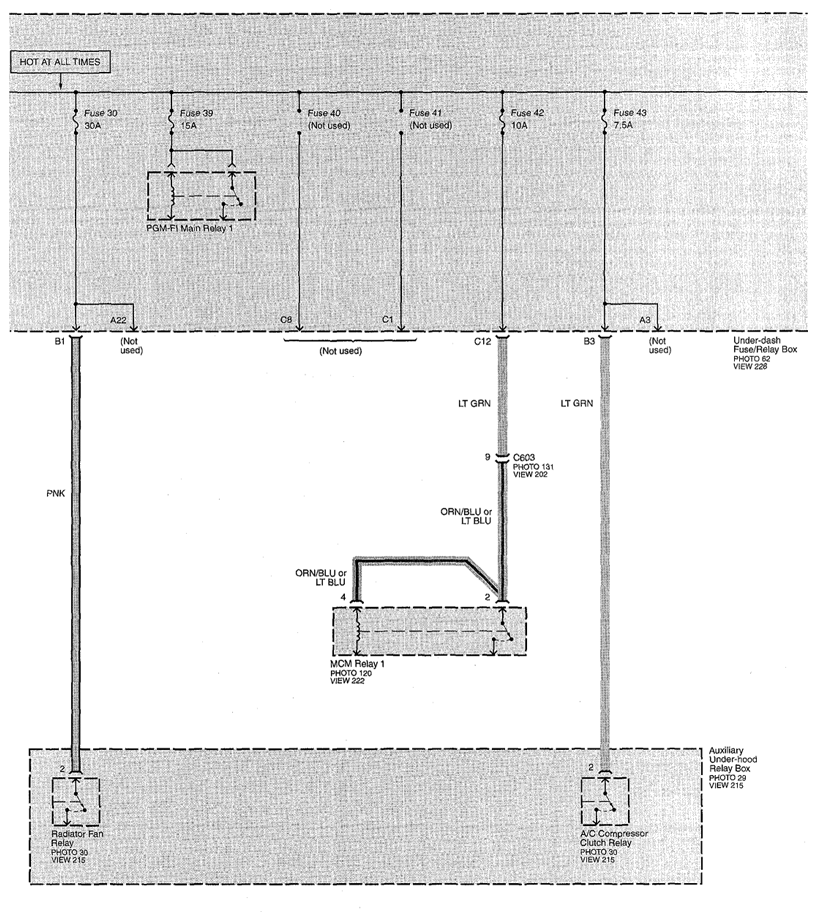

Fig 10: Power Distribution Circuit Diagram (Page 10-9)

G07757100

Fig 11: Power Distribution Circuit Diagram (Page 10-10)

G07757101

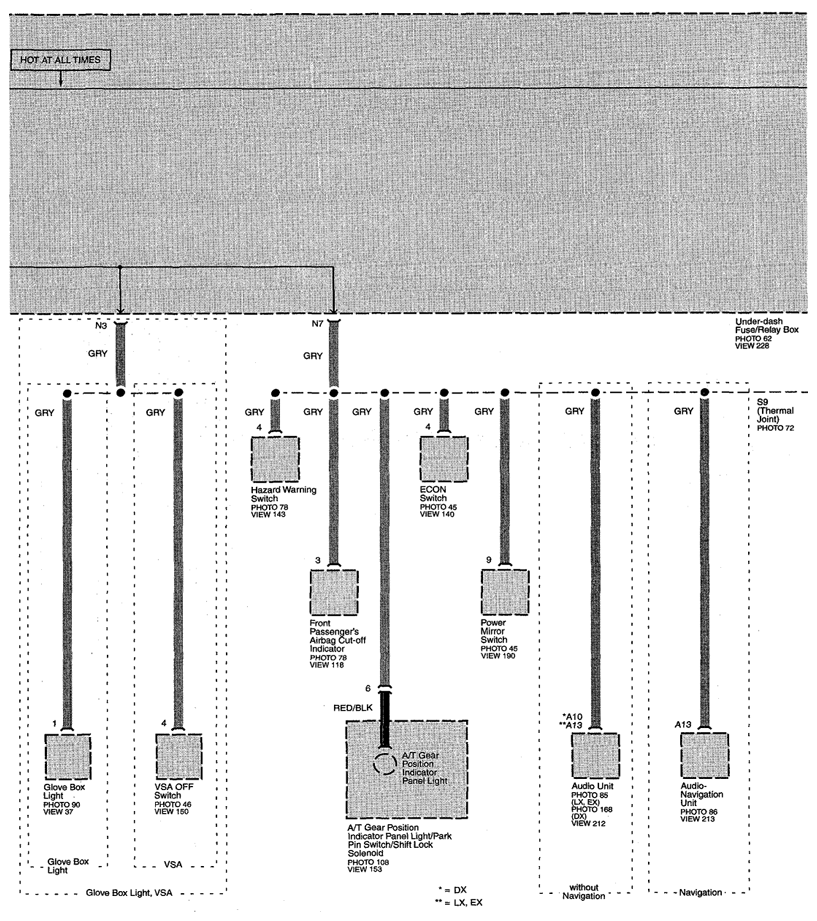

Fig 12: Power Distribution Circuit Diagram (Page 10-11)

G07757102

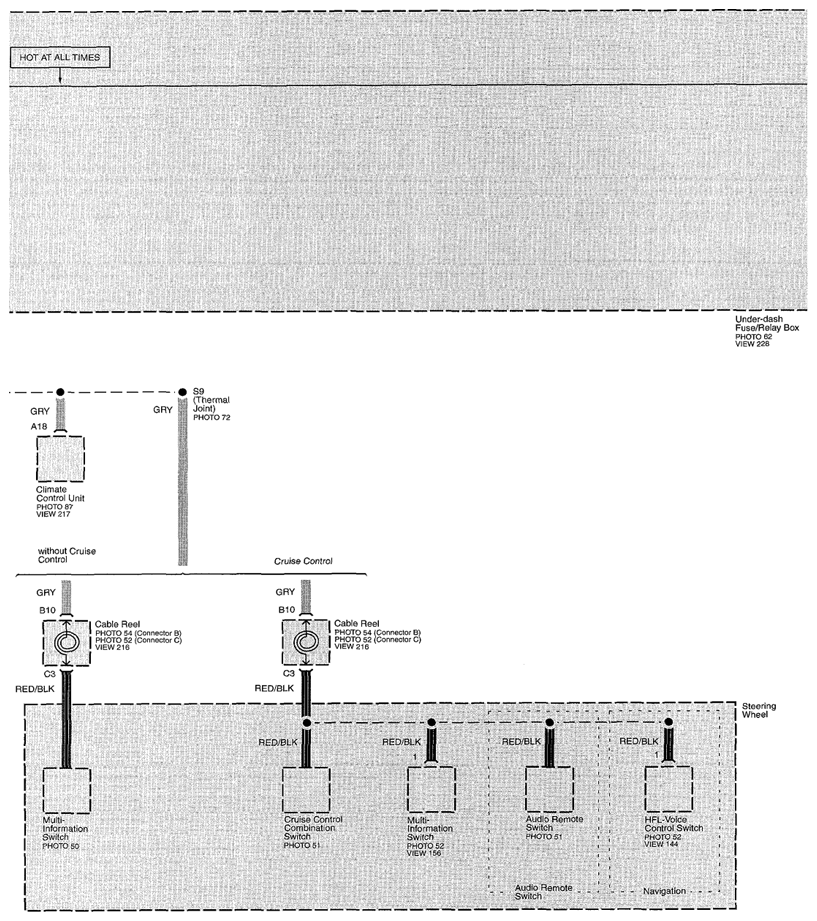

Fig 13: Power Distribution Circuit Diagram (Page 10-12)

G07757103

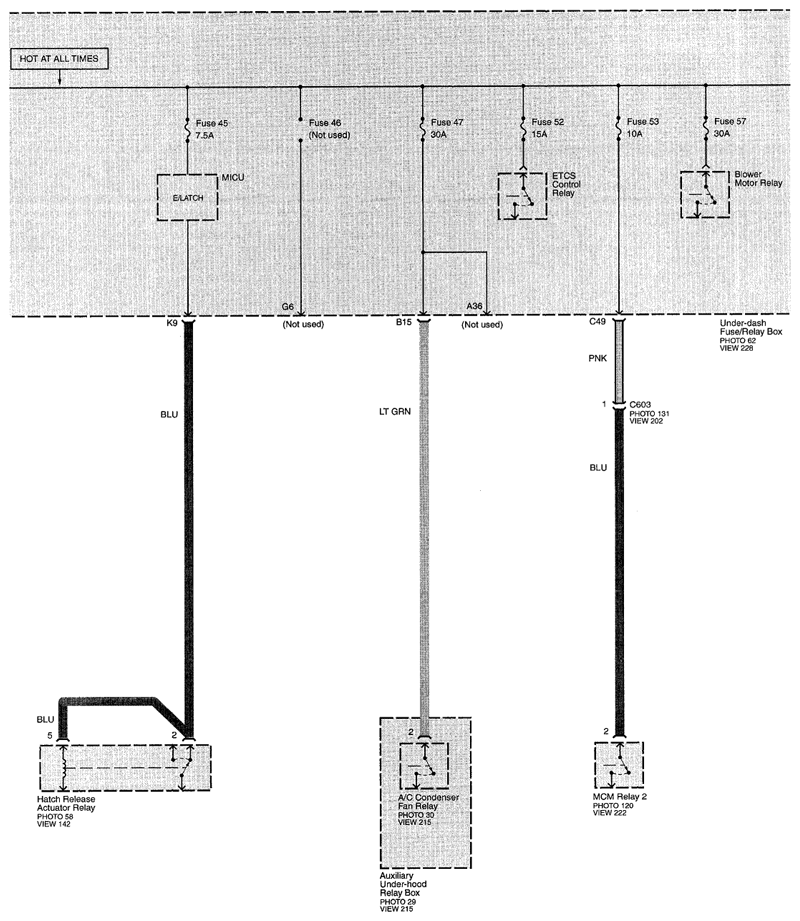

Fig 14: Power Distribution Circuit Diagram (Page 10-13)

G07757104

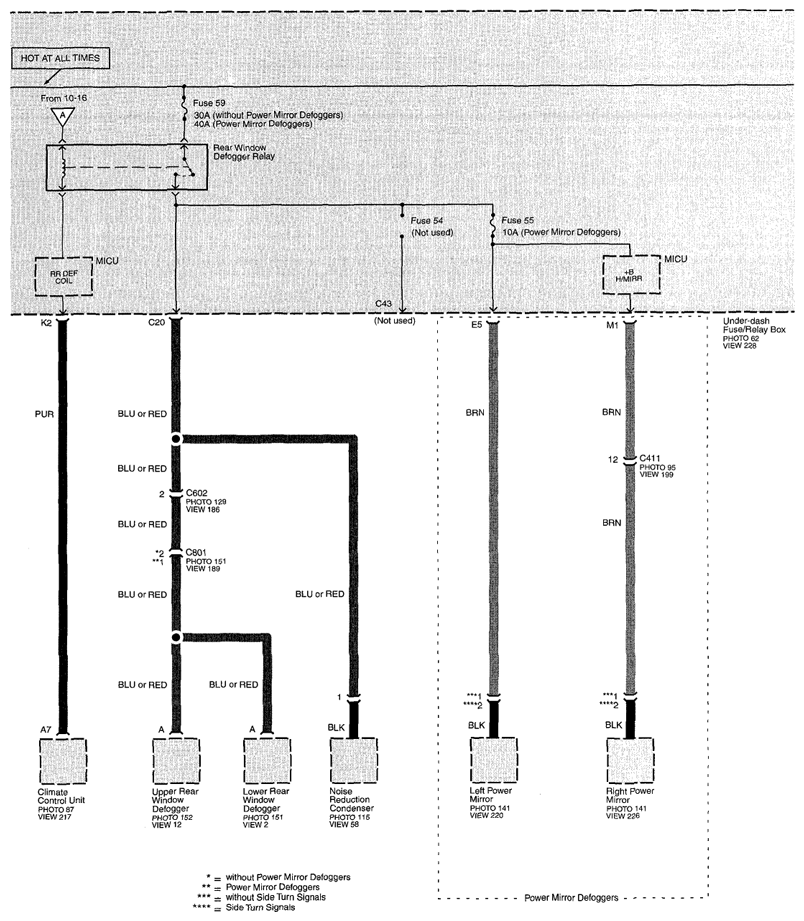

Fig 15: Power Distribution Circuit Diagram (Page 10-14)

G07757105

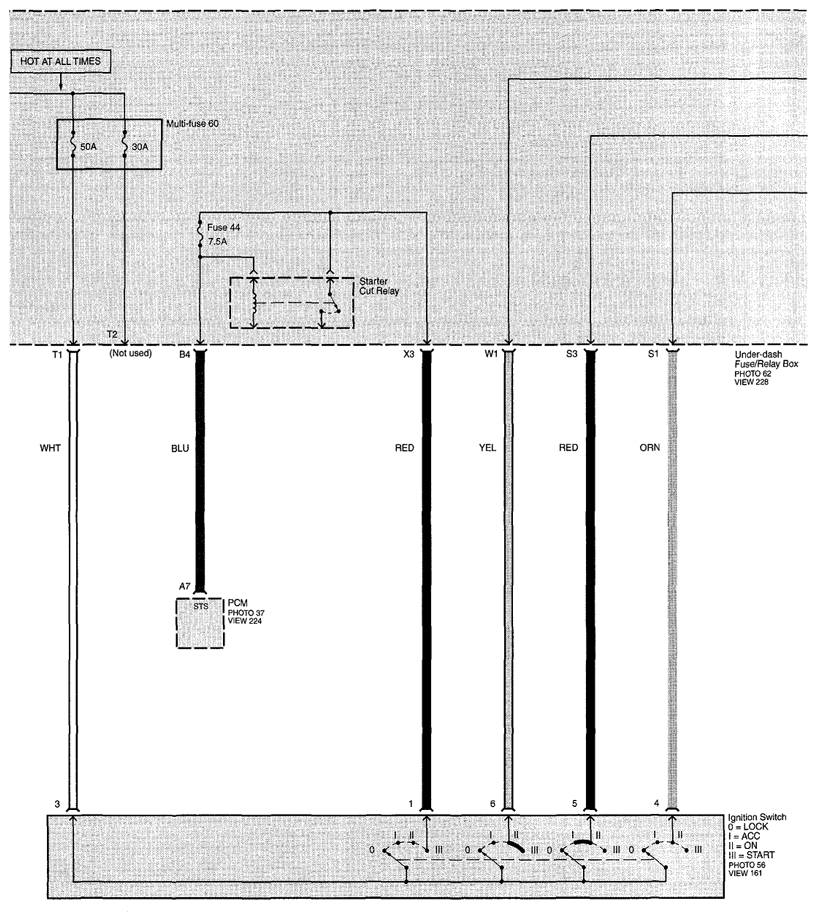

Fig 16: Power Distribution Circuit Diagram (Page 10-15)

G07757106

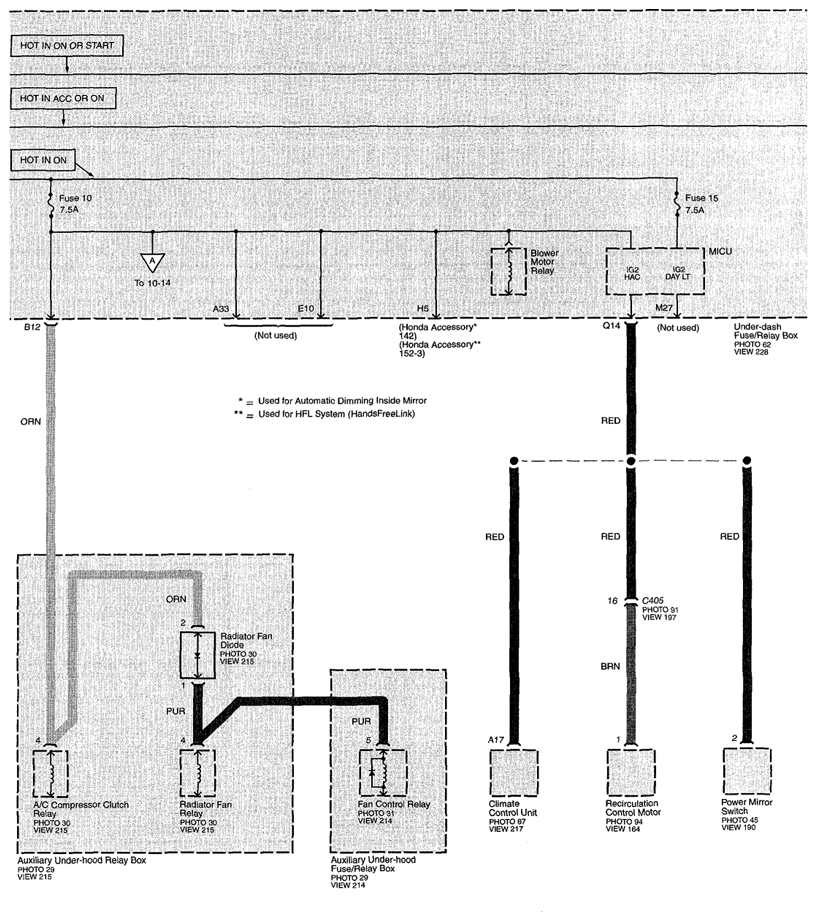

Fig 17: Power Distribution Circuit Diagram (Page 10-16)

G07757107

Fig 18: Power Distribution Circuit Diagram (Page 10-17)

G07757108

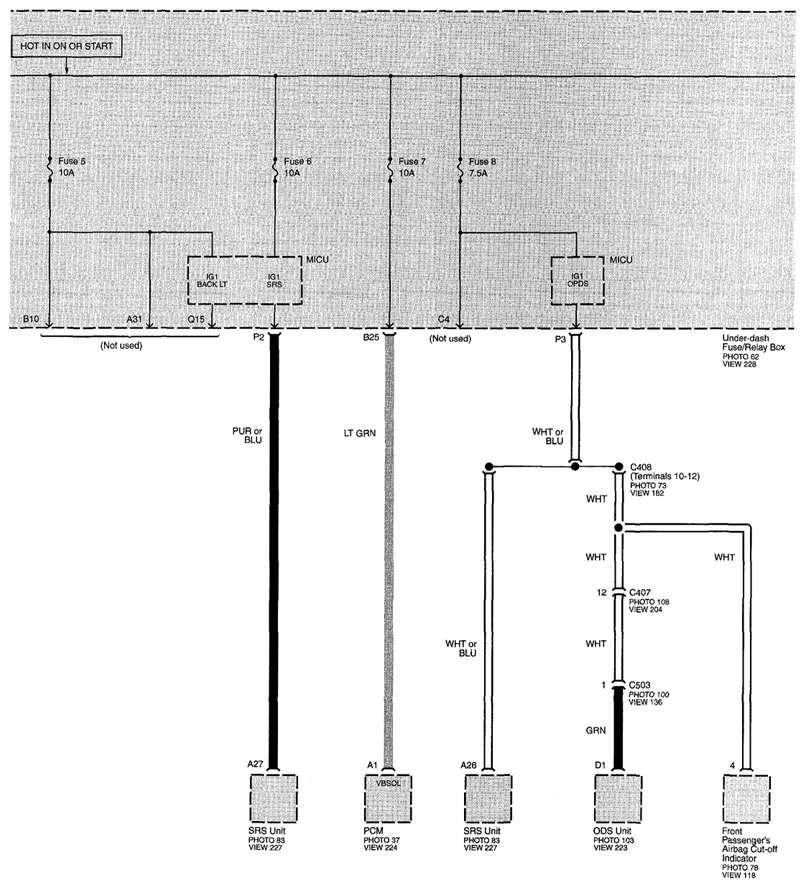

Fig 19: Power Distribution Circuit Diagram (Page 10-18)

G07757109

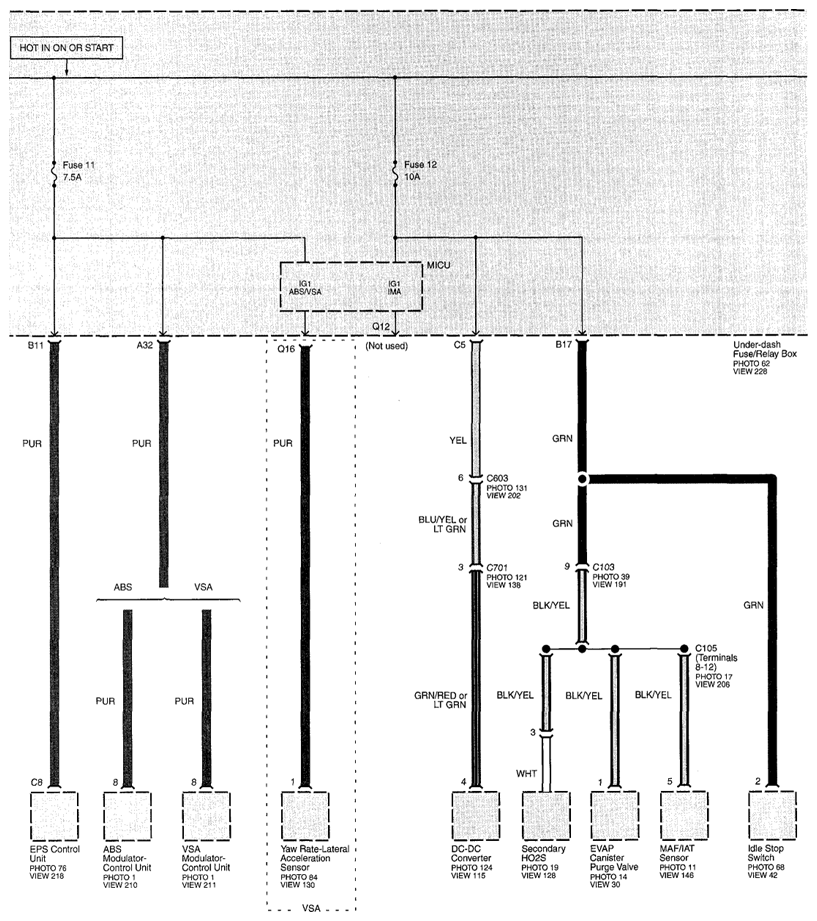

Fig 20: Power Distribution Circuit Diagram (Page 10-19)

G07757110

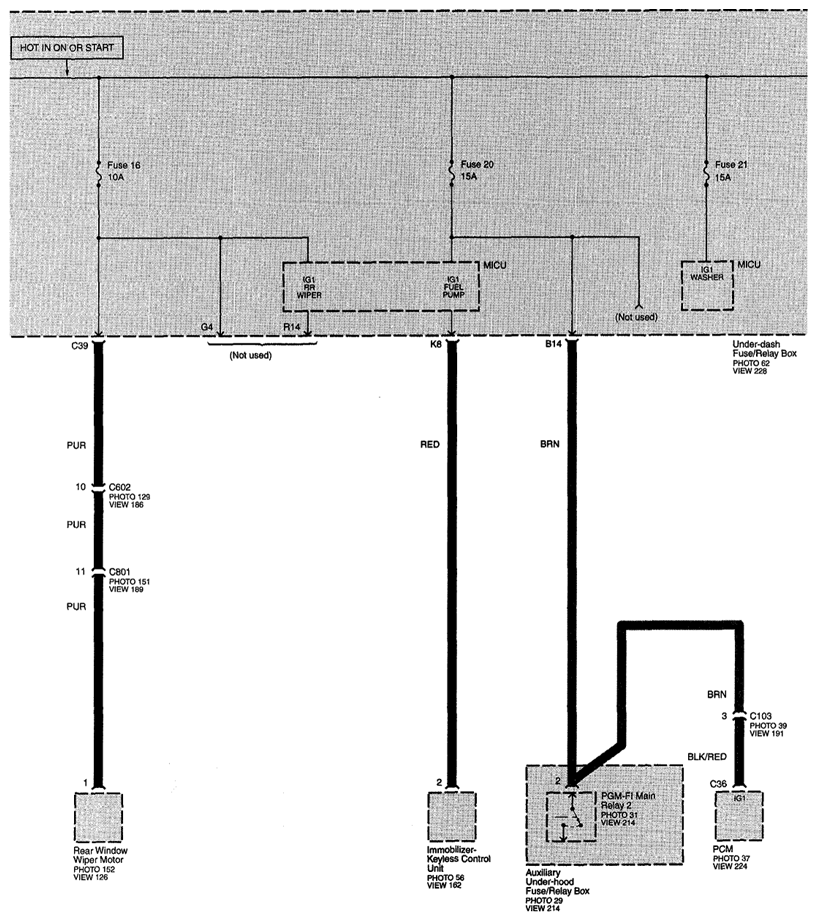

Fig 21: Power Distribution Circuit Diagram (Page 10-20)

G07757111

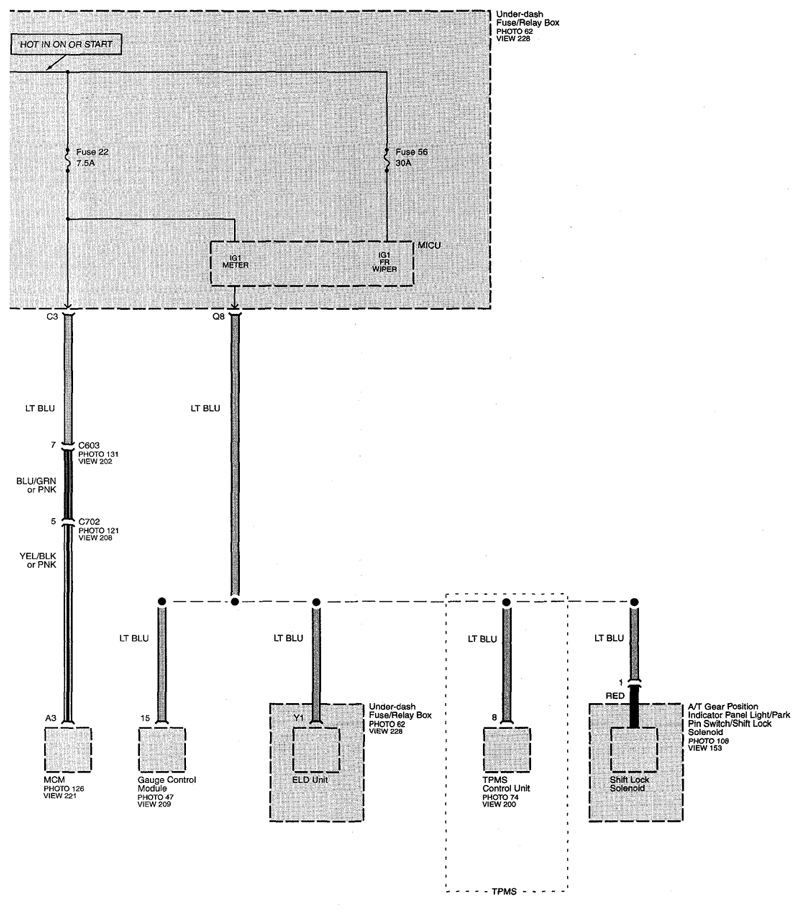

Fig 22: Power Distribution Circuit Diagram (Page 10-21)

G07757112
