MPI Module Connector End View (View 178)
GRY
Under IPU Lid
On PCU Wire Harness

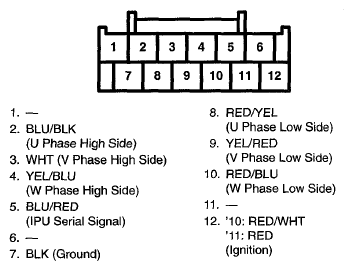

Fig 1: MPI Module Connector Terminal (View 178)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
