TPMS Control Unit Connector End View (TPMS) (View 200)

• GRY
• Under Left Side of Dash
• On Dashboard Wire Harness

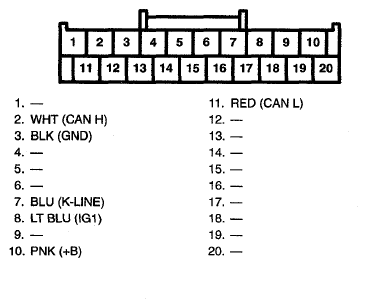

Fig 1: TPMS Control Unit (TPMS) Connector Terminal (View 200)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
