Oil Pump Overhaul: Removal

  1. Remove the cam chain (see CAM CHAIN REMOVAL ).
  2. Remove the auto-tensioner, then install the support eyelet.
    Fig 1: Identifying Support Eyelet
    G06429055Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the engine support hanger (AAR-T1256), then attach the hook to the slotted hole in the support eyelet. Tighten the wing nut (A) by hand to lift and support the engine.
    Fig 2: Lifting Engine With Engine Support Hanger
    G06429056Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the oil pan (see OIL PAN REMOVAL ).
  5. Remove the oil screen (A), then remove the oil pump (B).

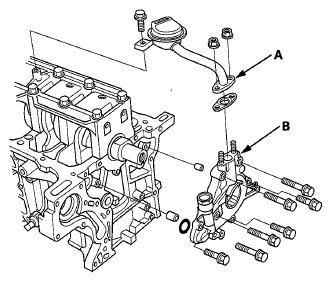

    Fig 3: Identifying Oil Screen And Oil Pump With Bolts
    G06429057Courtesy of AMERICAN HONDA MOTOR CO., INC.
