Audio-Navigation Unit Connector End View (Navigation) (View 213)

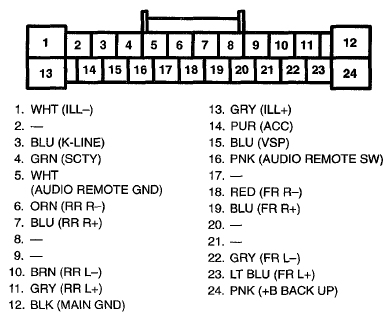

Connector A

• GRY/WHT
• On Dashboard Wire Harness

Fig 1: Audio-Navigation Unit (Navigation) Connector Terminal - Connector A (View 213)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

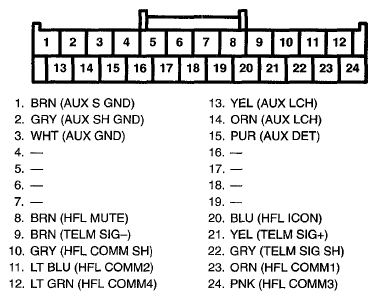

Connector B

• GRY
• On Dashboard Wire Harness

Fig 2: Audio-Navigation Unit (Navigation) Connector Terminal - Connector B (View 213)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

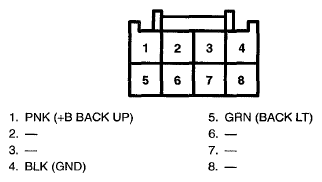

Connector C

• GRY
• On Dashboard Wire Harness

Fig 3: Audio-Navigation Unit (Navigation) Connector Terminal - Connector C (View 213)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

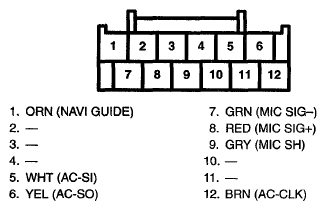

Connector D

• GRY
• On Dashboard Wire Harness

Fig 4: Audio-Navigation Unit (Navigation) Connector Terminal - Connector D (View 213)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

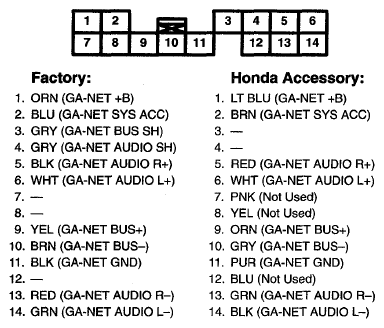

Connector E

• WHT
• On Dashboard Wire Harness (Factory)
• On XM Radio Harness (Honda Accessory)

Fig 5: Audio-Navigation Unit (Navigation) Connector Terminal - Connector E (View 213)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

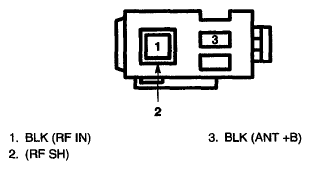

Connector G

• GRY
• On AM/FM Antenna Sub-lead Harness

Fig 6: Audio-Navigation Unit (Navigation) Connector Terminal - Connector G (View 213)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector H

• GRY
• On GPS Antenna Harness

Fig 7: Audio-Navigation Unit (Navigation) Connector Terminal - Connector H (View 213)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
