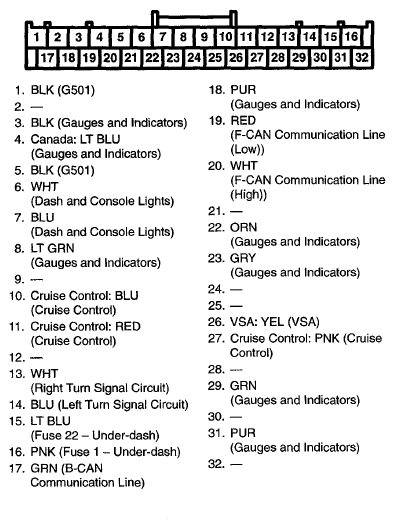

Gauge Control Module Connector End View (View 209)

• GRY
• Left Side of Dash
• On Dashboard Wire Harness

Fig 1: Gauge Control Module Connector Terminal (View 209)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
