SRS Unit Connector End View (View 227)

YEL/WHT
Under Middle of Dash
Connector A
- On Dashboard Wire Harness

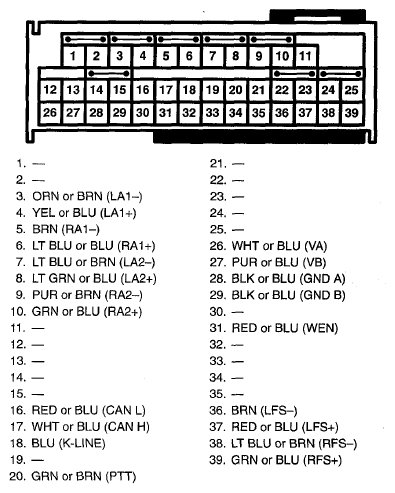

Fig 1: SRS Unit Connector Terminal - Connector A (View 227)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- On Floor Wire Harness

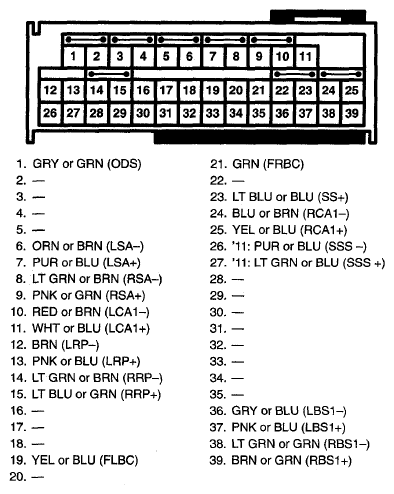

Fig 2: SRS Unit Connector Terminal - Connector B (View 227)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
