Component Location Index

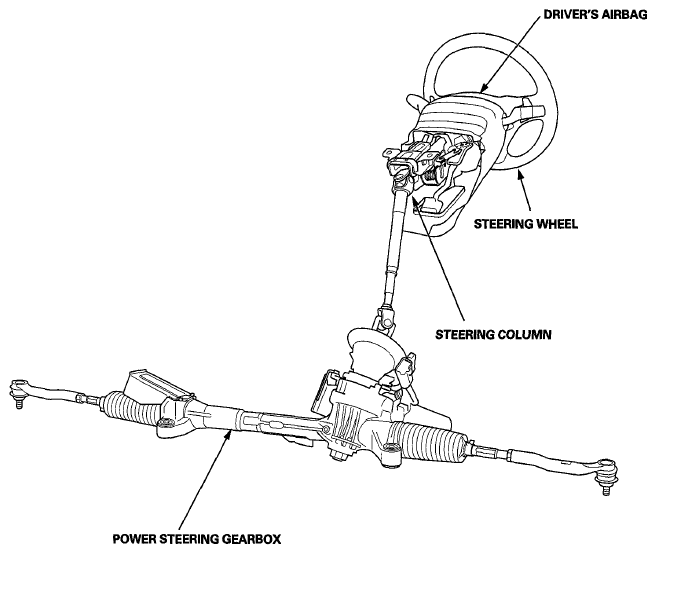

Fig 1: Identifying Steering Component Location
G06430424Courtesy of AMERICAN HONDA MOTOR CO., INC.

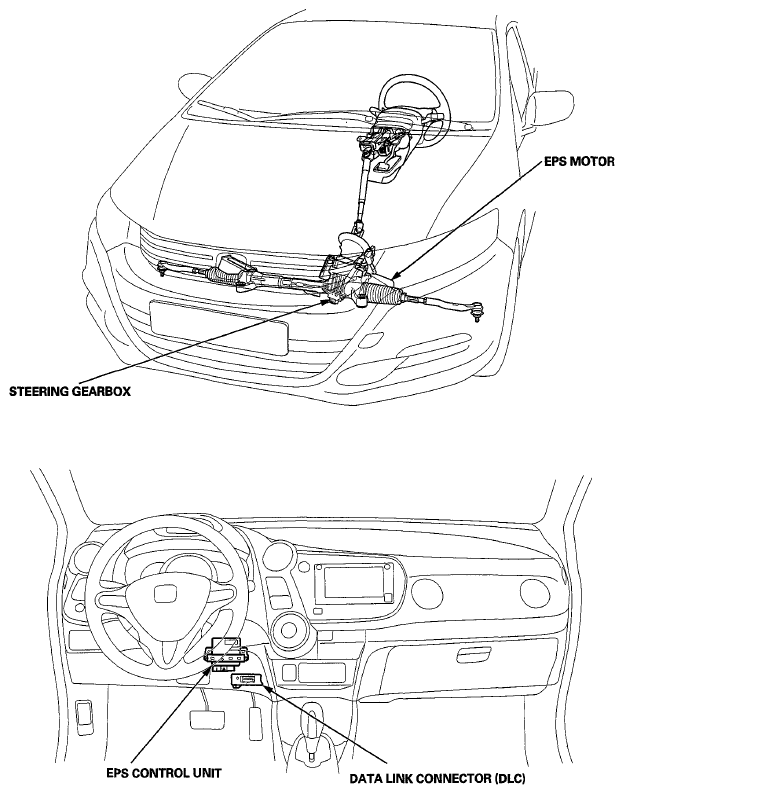

Fig 1: Identifying EPS Components Location
G06430459Courtesy of AMERICAN HONDA MOTOR CO., INC.
