Component Location Index

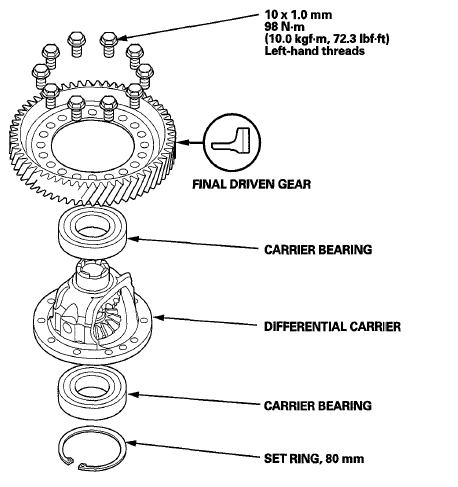

Fig 1: CVT Differential Replacement Components And Bolts With Torque Specifications
G06430353Courtesy of AMERICAN HONDA MOTOR CO., INC.
