CVTF Filter Replacement

  1. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  2. Remove the drain plug, and drain the CVT fluid (CVTF).
  3. Reinstall the drain plug and a new sealing washer.
    NOTE: Remove metal dust from the magnetic surface of the drain plug.
  4. Disconnect the CVTF cooler hoses from the CVTF filter (A).

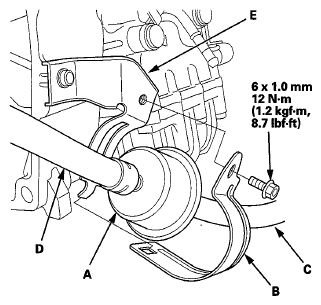

    Fig 1: CVTF Cooler Hose, CVTF Filter And CVTF Filter Holder With Torque Specifications
    G06430196Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the bolt securing the CVTF filter holder (B), and remove the CVTF filter.
  6. Secure the new CVTF filter on its bracket (D) with the CVTF filter holder and the bolt.
  7. Slide the CVTF cooler hose with the hose clips on the CVTF filter (see CVTF COOLER HOSE REPLACEMENT ).
  8. Refill the transmission with CVTF to the proper level (see CVT FLUID REPLACEMENT ).
  9. Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
