Six-position Transmission

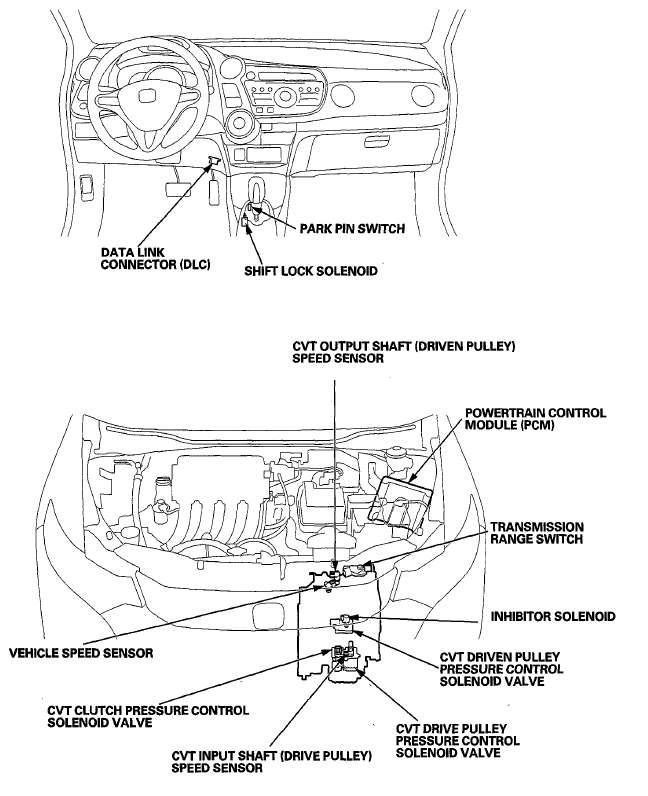

Fig 1: Identifying Six-Position Transmission Components
G06430018Courtesy of AMERICAN HONDA MOTOR CO., INC.
