Tailgate Outer Handle Switch Test/Replacement: Replacement

Removal the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the 2P connector (A) from the tailgate outer handle switch.

Fig 1: Identifying Tailgate Outer Handle Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two nuts (A).

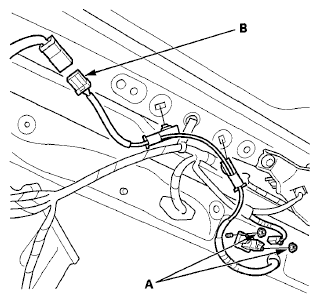

Fig 2: Identifying Rearview Camera 6P Connector And Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If equipped, disconnect the rearview camera 6P [12P] connector (B).
[]: With navigation
Replace the tailgate outer handle switch (A). A.

Fig 3: Identifying Tailgate Outer Handle Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: The illustration shows with rearview camera.
Install the new switch in the reverse order of removal.
