Power Mirror Switch Test/Replacement

Remove the power window master switch (see REAR POWER WINDOW SWITCH TEST/REPLACEMENT ).
Disconnect the 13P connector from the power mirror switch (A).

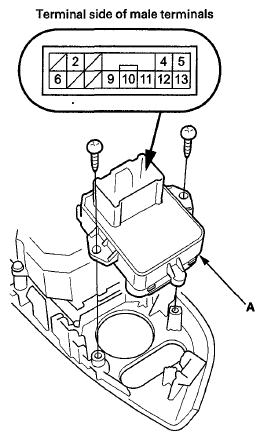

Fig 1: Identifying Power Mirror Switch & 13P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table below.
Power Mirror Switch

Fig 2: Identifying Terminal Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the screws and replace the power mirror switch.
