Sealing Bolt Installation

NOTE: When installing the sealing bolts, always use new washers.

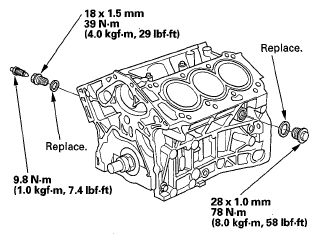

Fig 1: Sealing Bolt And O-Ring With Torque Specifications
G05964225Courtesy of AMERICAN HONDA MOTOR CO., INC.
