Ceiling Light Test/Replacement

Ceiling Light Test/Replacement

1. Turn the ceiling light switch OFF.

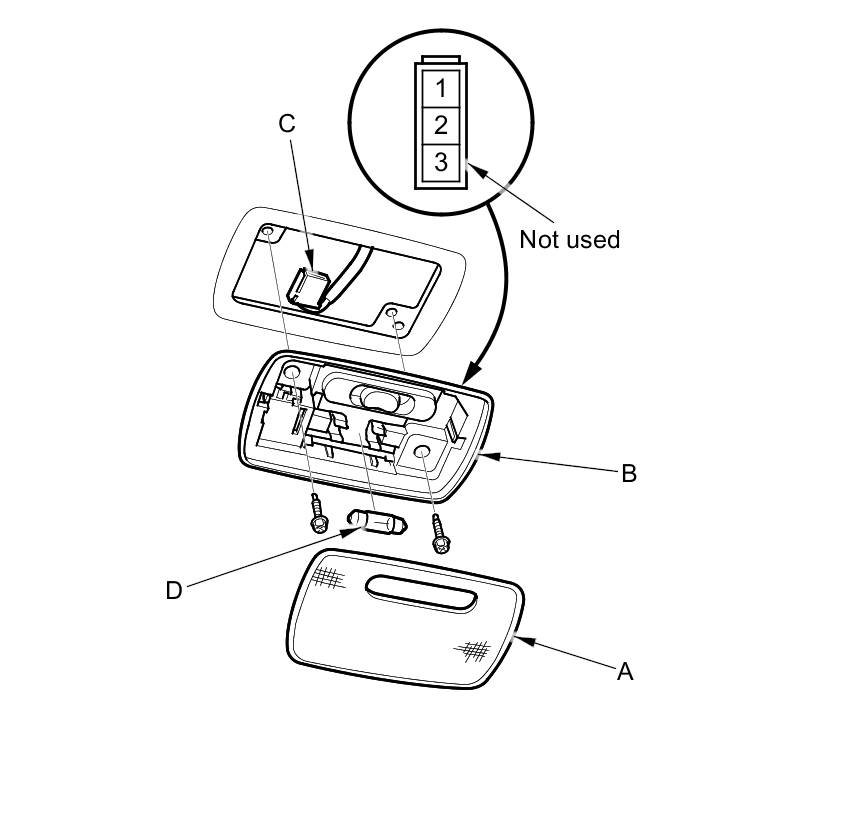

2. Carefully pry the lens (A) off with a small screwdriver.









3. Remove the screws, then remove the ceiling light (B).

4. Disconnect the 3P connector (C) from the ceiling light.

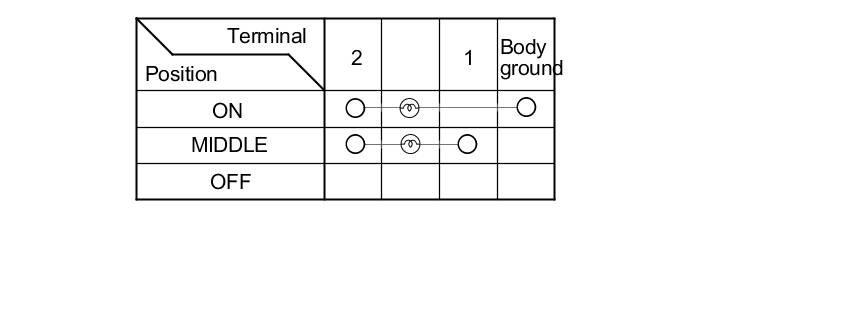

5. Check for continuity between the terminals in each switch position according to the table.





6. If the continuity is not as specified, check the bulb (D). If the bulb is OK; replace the ceiling light.

7. Install the light in the reverse order of removal.
