Rocker Arm Oil Control Solenoid Replacement




Rocker Arm Oil Control Solenoid Replacement

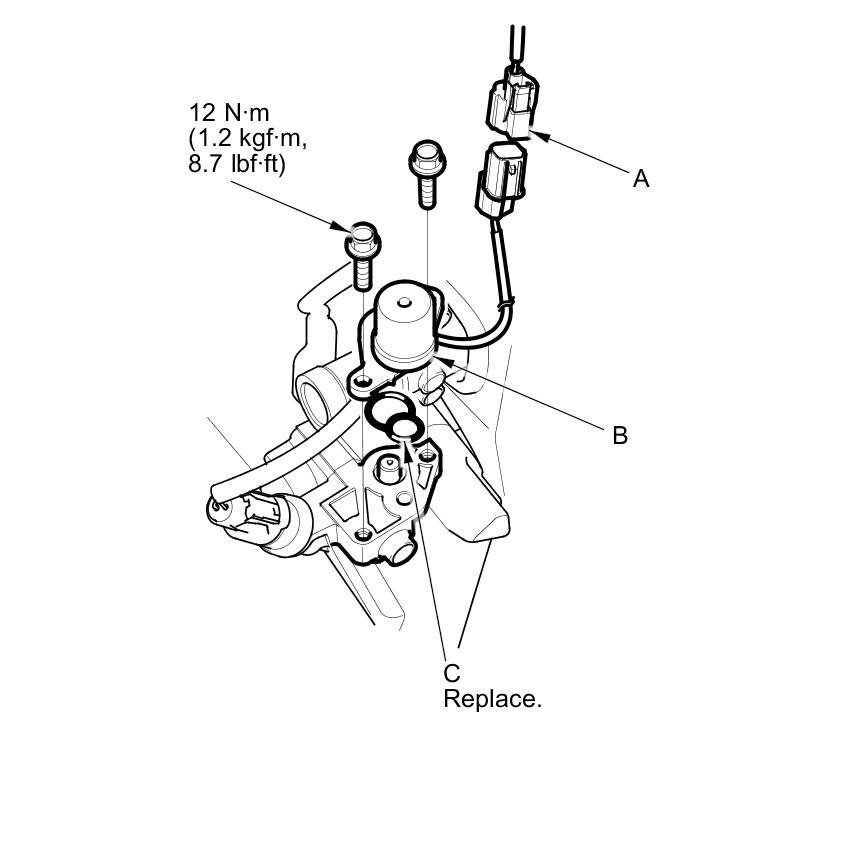

1. Disconnect the rocker arm oil control solenoid connector (A).





2. Remove the rocker arm oil control solenoid (B).

3. Install the parts in the reverse order of removal with a new O-ring (C).
