Structural Brace: Service and Repair

Rear Floor Under Bar Removal and Installation

Removal

1. Vehicle Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Rear Floor Under Bar

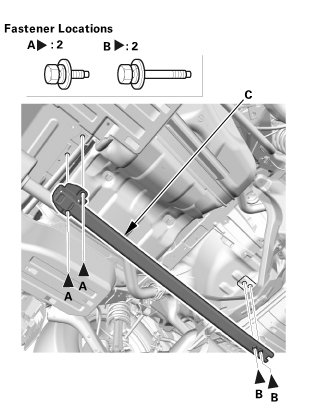

1. Remove the bolts (A, B) securing the rear floor under bar (C).

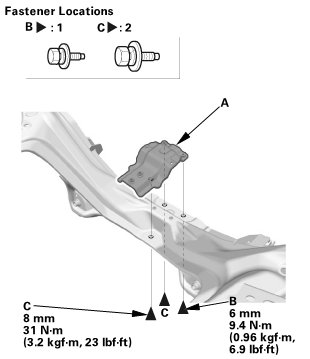

2. Remove the bolts (A, B) securing the rear floor under bar bracket (C).

Installation

1. Rear Floor Under Bar

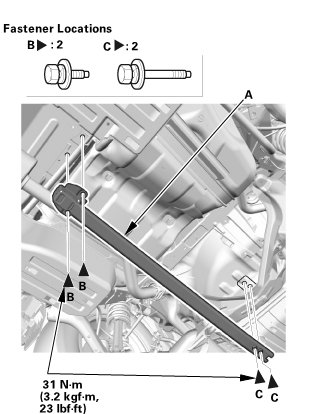

1. Install the rear floor under bar bracket (A), then install the bolts (B, C).





2. Install the rear floor under bar (A), then install the bolts (B, C).
