Electric Load Sensor: Service and Repair

ELD Removal and Installation

Removal

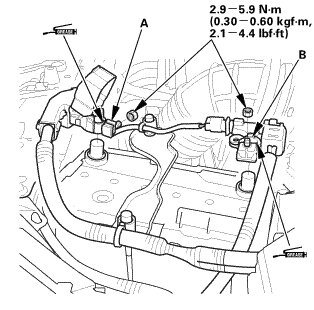

1. Battery Terminal - Disconnection





1. Make sure the ignition switch is in LOCK (0).

2. Disconnect and isolate the negative cable (A) from the battery.

NOTE: Always disconnect the negative side first.

3. Disconnect the positive cable (B) from the battery.

2. ELD

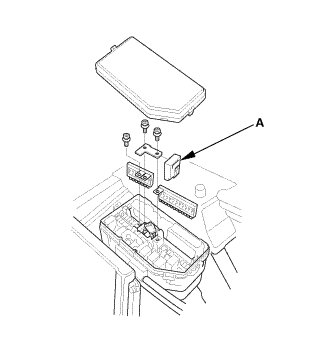

1. Remove the ELD (A).

Installation

1. ELD

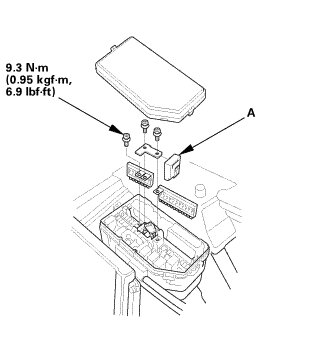

1. Install the ELD (A).

2. Battery Terminal - Reconnection





NOTE: If the battery performance is abnormal, test the battery.

1. Clean the battery terminals.

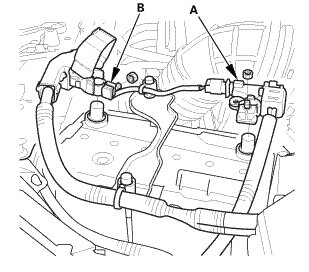

2. Connect the positive cable (A) to the battery.

NOTE: Always connect the positive side first.

3. Connect the negative cable (B) to the battery.

4. Apply multipurpose grease to the terminals to prevent corrosion.
