Spark Plug: Service and Repair

Ignition Coil and Spark Plug Removal and Installation

Removal

1. Ignition Coil Cover

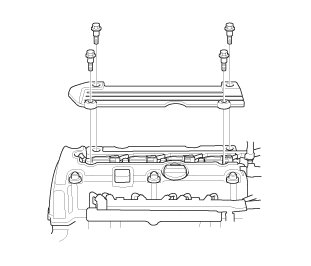

1. Remove the ignition coil cover.

2. Ignition Coil

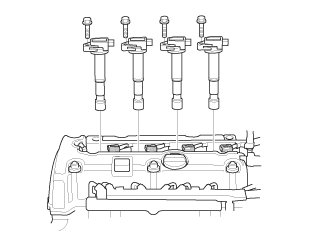

1. Remove the ignition coils.

3. Spark Plug

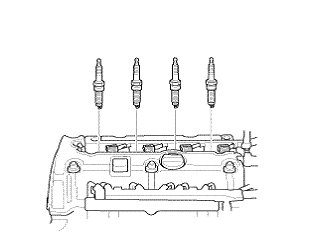

1. Remove the spark plugs.

Installation

1. Spark Plug

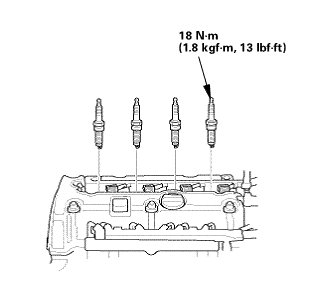

1. Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger tight, then tighten the plugs to the specified torque.








2. Ignition Coil

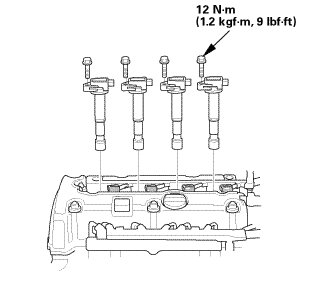

1. Install the ignition coils.

3. Ignition Coil Cover

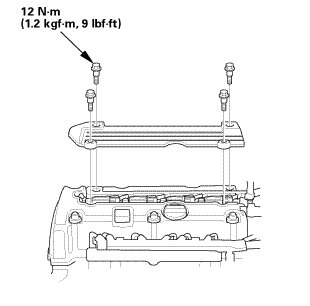

1. Install the ignition coil cover.
