Instrument Panel Control Module: Locations

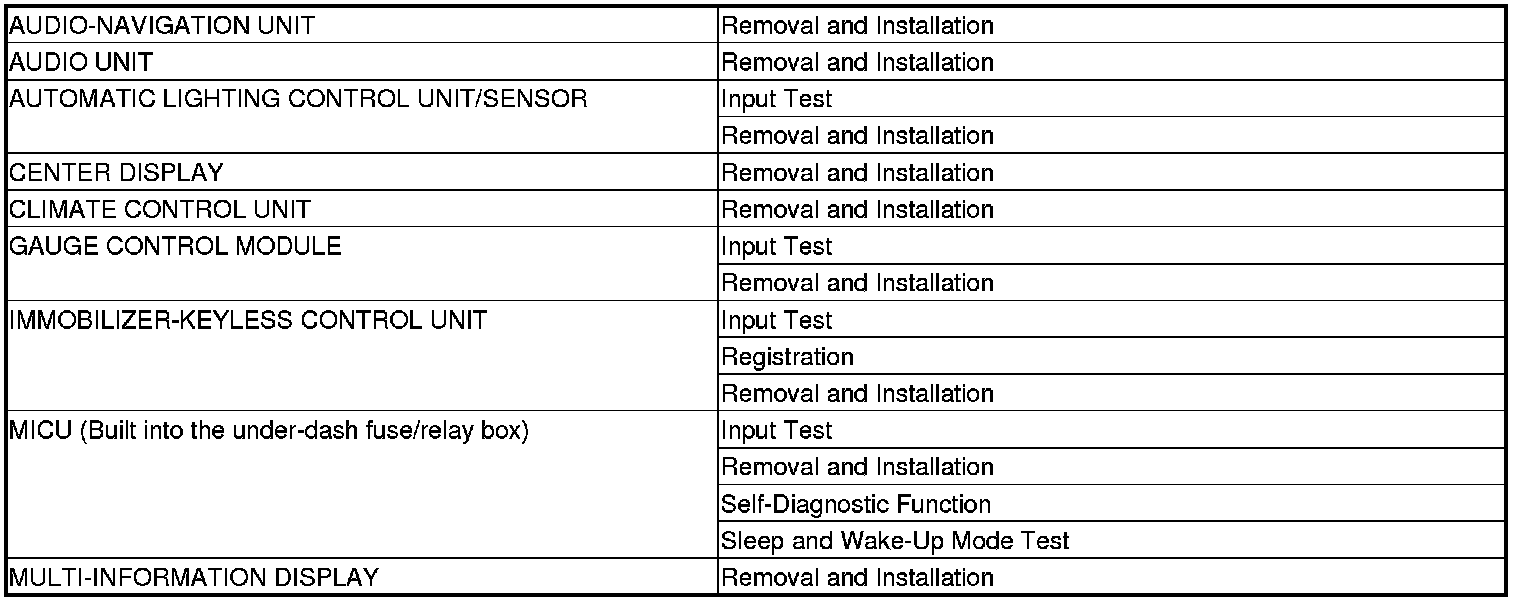

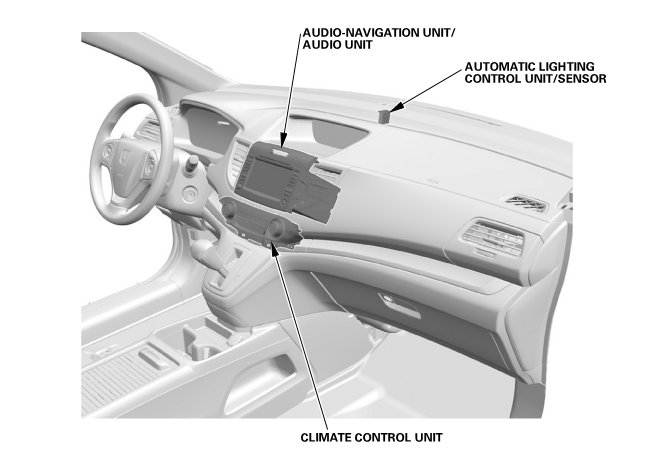

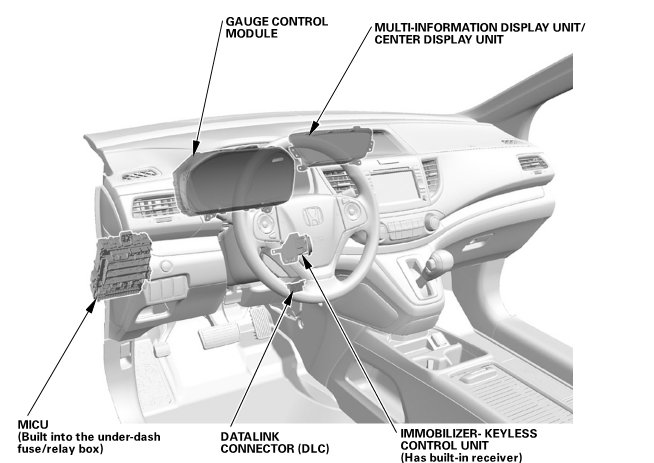

Multiplex Integrated Control System Component Location Index
