Rear Power Window Switch Removal And Installation

Rear Power Window Switch Removal and Installation

Removal

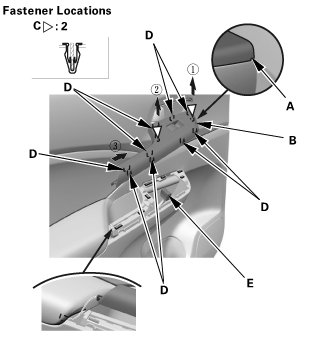

1. Rear Door Power Window Switch Panel





1. Carefully pry out on the notch (A) in the power window switch panel (B) with the appropriate trim tool to detach the clips (C) and the hooks (D). Disconnect the connector (E), then remove the power window switch panel.

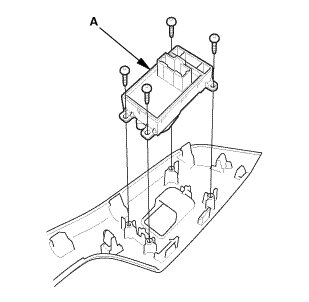

2. Rear Power Window Switch





1. Remove the rear power window switch (A).

Installation

1. Rear Power Window Switch





1. Install the rear power window switch (A).

2. Rear Door Power Window Switch Panel





1. Connect the connector (A), then install the power window switch panel (B). Make sure the clips (C) and the hooks (D) snap into place securely.
