Rear Power Window Switch Test

Rear Power Window Switch Test

Removal

1. Rear Door Power Window Switch Panel

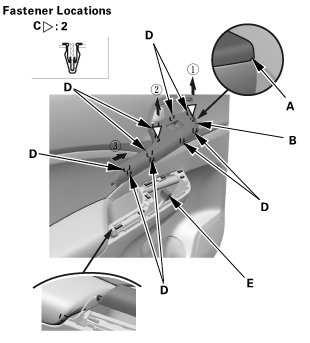

1. Carefully pry out on the notch (A) in the power window switch panel (B) with the appropriate trim tool to detach the clips (C) and the hooks (D). Disconnect the connector (E), then remove the power window switch panel.

Test

1. Rear Power Window Switch - Test

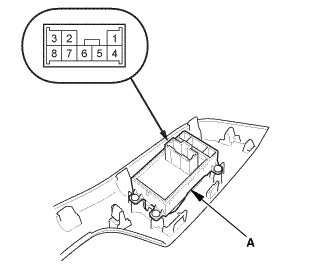

1. Check for continuity between the terminals in each position according to the table.

2. If the continuity is not as specified, replace the rear power window switch (A).

Installation

1. Rear Door Power Window Switch Panel

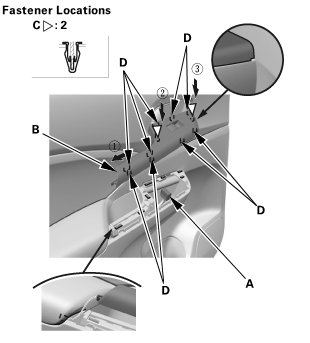

1. Connect the connector (A), then install the power window switch panel (B). Make sure the clips (C) and the hooks (D) snap into place securely.
