Shift Lock Stop/Shift Lock Stop Cushion Replacement

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Release the lock tabs (A) retaining the shift lock solenoid (B) using thin blade screwdriver, then remove the shift lock solenoid.

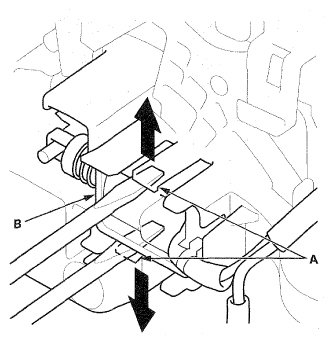

Fig 1: Releasing Lock Tabs (A) Retaining Shift Lock Solenoid (B) Using Thin Blade Screwdriver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the park pin switch 2P connector (A).

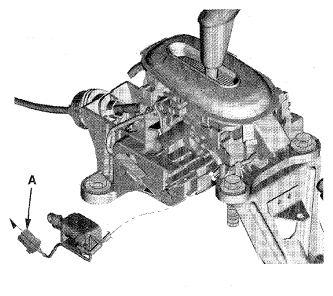

Fig 2: Locating Park Pin Switch 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the shift lock stop/stop cushion (A), and replace them as an assembly.

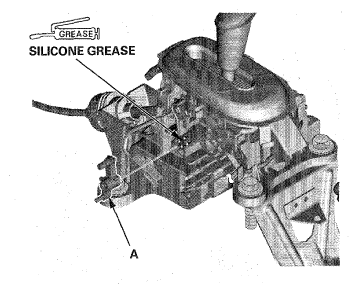

Fig 3: Locating Shift Lock Stop/Stop Cushion
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the shift lock solenoid (A) by aligning the joint of the shift lock solenoid plunger (B) with the tip of the shift lock stop (C), then push the shift lock solenoid into the shift lever bracket base securely.

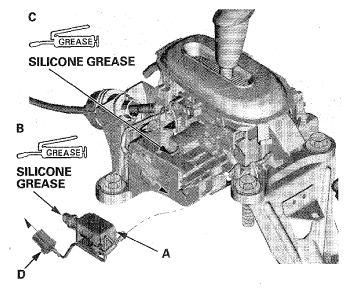

Fig 4: Locating Shift Lock Solenoid And Park Pin Switch 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the park pin switch 2P connector (D).
Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
