PCM CVT Control System Electrical Connections

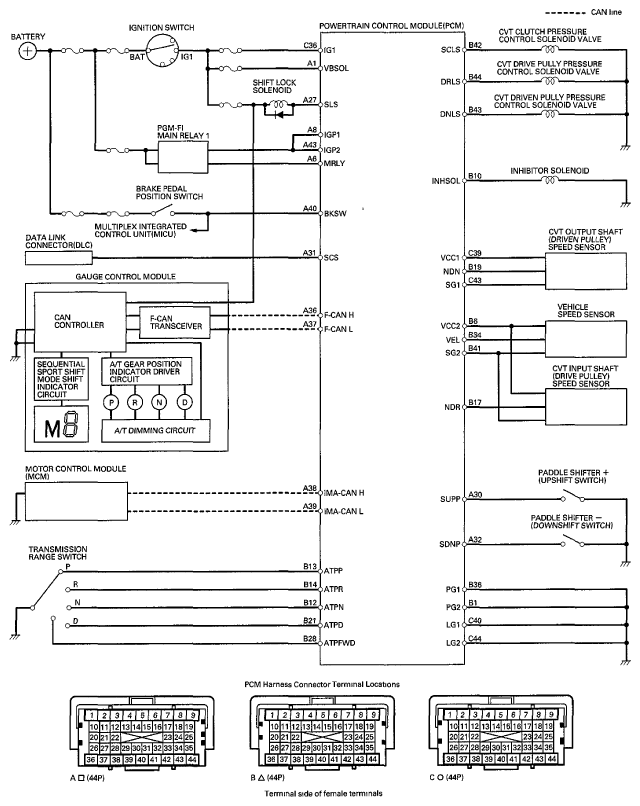

Fig 1: PCM CVT Control System Electrical Connections Diagram
G06950890Courtesy of AMERICAN HONDA MOTOR CO., INC.
