Basic Audio Operation

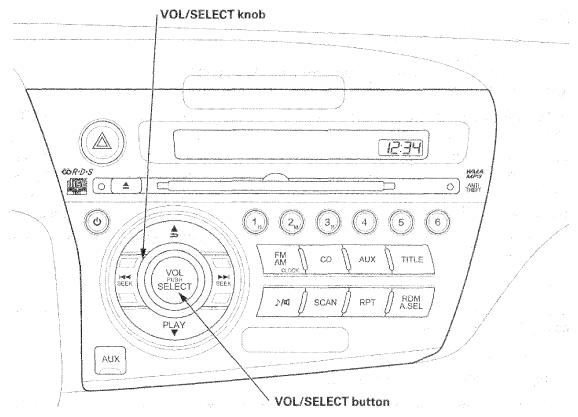

Fig 1: Identifying Vol/Select Knob And Button

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When you press the VOL/SELECT button, the mode changes to the SELECT mode. When you are in the SELECT mode, use the following buttons or knob to navigate through the various audio inputs.

BASIC AUDIO OPERATION CHART

BUTTON or KNOB

RADIO

CD-DA

CD (MP3/WMA) USB

iPod

VOL/SELECT knob

TUNE

TRACK selection

FOLDER selection FILE selection

Tune retrieval⁽¹⁾

VOL/SELECT button

Exit SELECT mode

Start playing the selected track

When a FOLDER is selected, you move down to the next level. When a music file is selected, the file begins playing.

↑

Exit SELECT mode

Returns to the previous level⁽²⁾

↓

Exit SELECT mode

Start playing the selected track

FOLDER/FILE selection and play⁽³⁾

PLAY MODE selection and play⁽⁴⁾

⁽¹⁾	There are four basic play modes (PLAYLISTS/ARTISTS/ALBUMS/SONGS) and the layered structure under applies to the specification for the iPod.

⁽²⁾	When you are in the top hierarchy, selecting ↑ exits the SELECT mode.

⁽³⁾	When ↓ is pressed with FOLDER selected, it begins playing the first music file in the FOLDER.

⁽⁴⁾	When ↓ is pressed with PLAYLIST/ARTIST/ALBUM selected, it begins playing the first music in the selected category.

When any other button is pressed, the SELECT mode is canceled, and the audio unit changes per the button pressed.
When you are in the SELECT mode, the selected radio station or music file continues playing until you select a new input or file (for example, you can listen to the radio until you find the song you wish to play on the CD).
