Unit Check (Quick Check): Display

This diagnosis does additional checks on the communication bus between the navigation CPU and the navigation display. In addition, this test checks the internal electronic functions and the touch screen operation.

If the connection is NG, replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION  ).

• Connection verifies internal communications.
• Version represents the software version for the display.

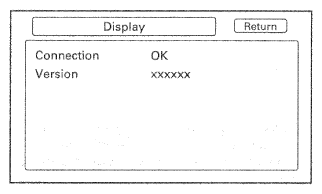

  Fig 1: Screen Display - Software Version

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
