Switch Test/Replacement

Remove the center console panel (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the 6P (or 7P*) connector from the seat heater switch, then remove the switch.
*: Passenger's seat heater switch

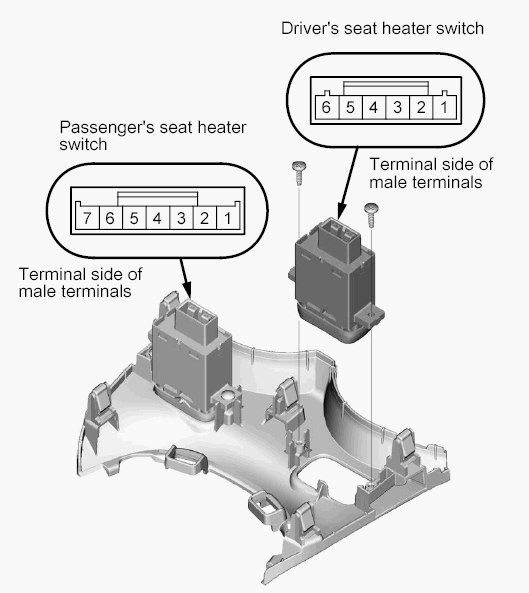

Fig 1: Identifying Passenger's Seat Heater Switch 6P (7P) Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.
NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting ($$) on the digital volt/ohm meter to check the diode bias.
- Be aware of this characteristic; a diode is one that conducts fully in one direction (forward) and not at all in the opposite direction (reverse).
Fig 2: Terminal Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the switch in reverse order of removal.
