A/C Compressor Thermal Protector Replacement

Remove the bolt and the holder (A). Disconnect the field coil connector (B), then remove the thermal protector (C).

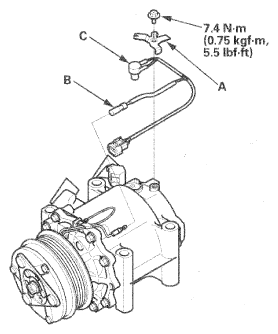

Fig 1: Holder, Field Coil Connector And Thermal Protector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the thermal protector (A) with a new one, and apply silicone sealant (B) to the bottom of the thermal protector.

Fig 2: Applying Silicone Sealant To Bottom Of Thermal Protector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
Install the thermal protector in the reverse order of removal.
