Climate Control Unit Knob Replacement

NOTE:
  • Do not work in a dusty or dirty place.
  • Do not work with dusty hands.
  • Discharge static electricity from your body before and during the work.
  • Do not touch the circuit board(s) with your bare hands.
  1. Remove the climate control unit (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION  ).
  2. Remove the dial (A).

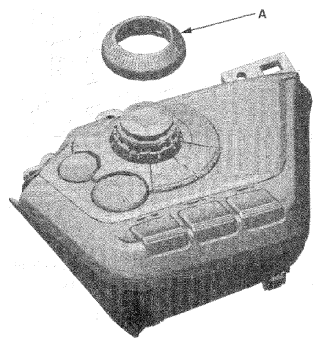

    Fig 1: Identifying Dial
    G06953767Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the self-tapping screws, then remove the cover (A) from the climate control unit.

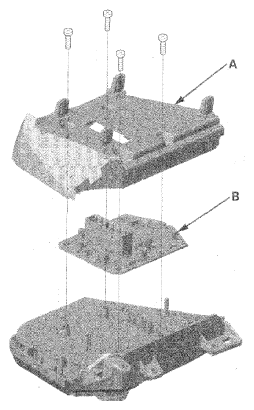

    Fig 2: Identifying Climate Control Unit Cover And Circuit Board With Self-Tapping Screws
    G06953768Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the circuit board (B).
  5. Remove the self-tapping screws and the circuit board (A).

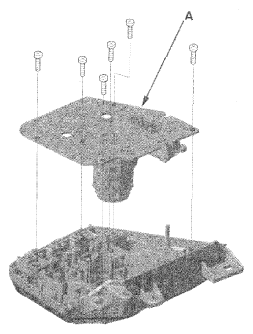

    Fig 3: Identifying Circuit Board With Self-Tapping Screws
    G06953769Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the self-tapping screws and the knob (A).

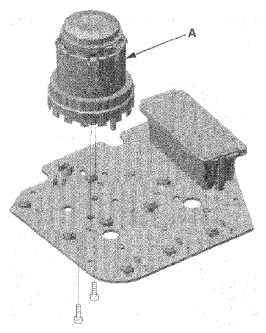

    Fig 4: Identifying Knob With Self-Tapping Screws
    G06953770Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the trim (A) and the panel (B).

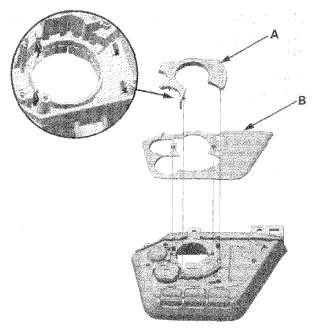

    Fig 5: Identifying Trim And Panel
    G06953771Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the knobs (A) using the flat-tip screwdriver wrapped in protective tape.
    NOTE: Take care not to scratch the climate control unit.
    Fig 6: Removing Knobs Using Flat-Tip Screwdriver
    G06953772Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the knob in the reverse order of removal. After installation, operate the various functions to see whether it works properly.
  10. Run the self-diagnostic function to confirm that there are no problems in the system (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION WITHOUT THE HDS  ).
