IPU Module Air Duct Removal/Installation

  1. Remove the cargo floor lid, the IPU duct cover, and the cargo area side trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).
  2. Remove the IPU module air ducts (A).

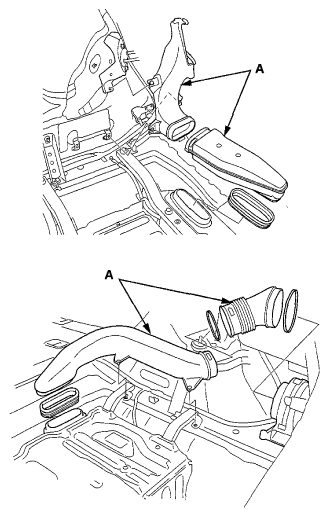

    Fig 1: Identifying IPU Module Air Ducts
    G06950552Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal.
