Junction board: Notes

The junction board consists of a high-voltage contactor, a bypass contactor, a bypass resistor, a battery current sensor, a fuse, and a battery module switch. The junction board is mounted on the battery module, and distributes high voltage.

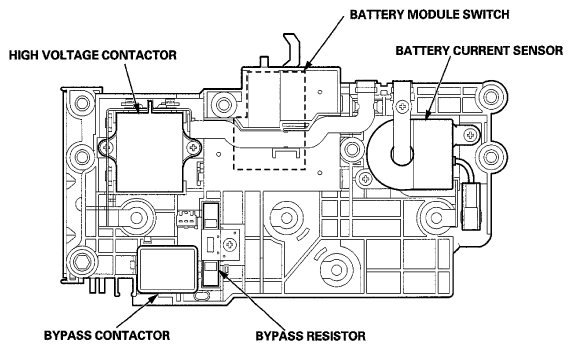

Fig 1: Identifying High Voltage Contactor, Bypass Contactor, Bypass Resistor, Battery Current Sensor And Battery Module Switch
