Ignition Switch: Service and Repair

Ignition Switch Replacement

SRS components are located in this area. Review the SRS component locations Locations, and precautions and procedures Service and Repair before doing repairs or servicing.

1. Do the 12 volt battery terminal disconnection procedure.

2. Remove the steering column covers Steering Column Cover Removal/Installation.

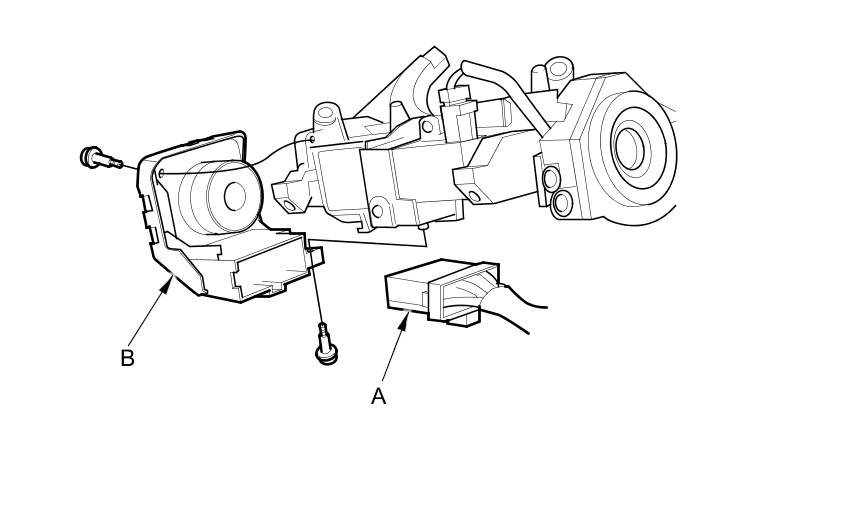

3. Disconnect the 7P connector (A) from the ignition switch (B).





4. Remove the two screws and the ignition switch.

5. Install the parts in the reverse order of removal.

6. Do the 12 volt battery terminal reconnection procedure.
