Variable Valve Timing Solenoid: Service and Repair

Rocker Arm Oil Control Valve Removal and Installation

Removal

1. Rocker Arm Oil Control Valve

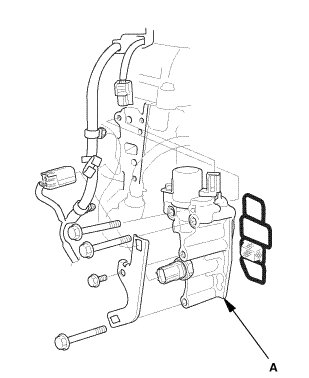

1. Remove the rocker arm oil control valve (A).

Installation

1. Rocker Arm Oil Control Valve

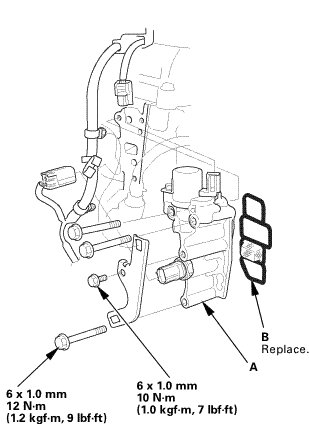

1. Install the rocker arm oil control valve (A) with a new O-ring (B).
