EVAP Control System Component Location Index

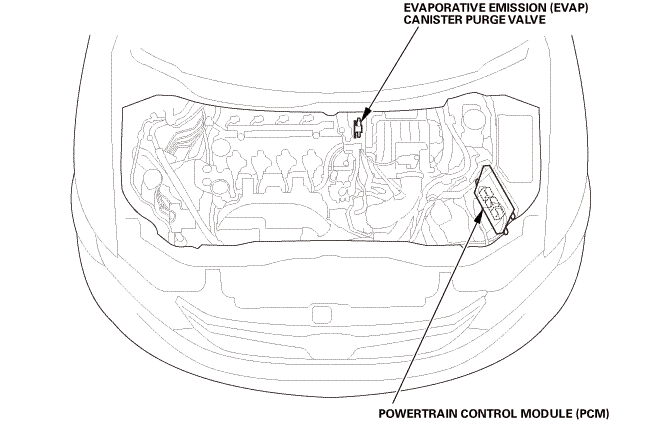

GHH118068Courtesy of HONDA, U.S.A., INC.

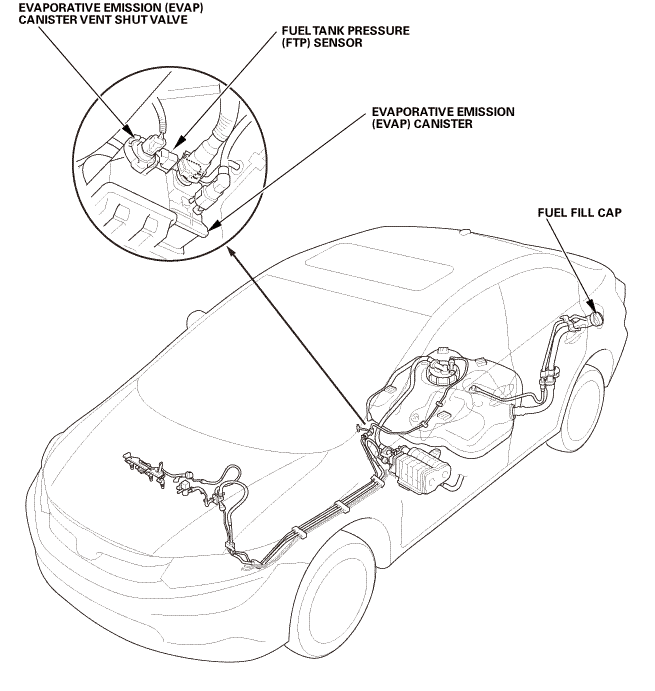

GHH118069Courtesy of HONDA, U.S.A., INC.
EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE Removal and Installation
POWERTRAIN CONTROL MODULE (PCM) Update - Refer to: PCM Update, or PCM Removal and Installation (Without Keyless Access System), or PCM Removal and Installation (With Keyless Access System)
Removal and Installation - Refer to: PCM Update, or PCM Removal and Installation (Without Keyless Access System), or PCM Removal and Installation (With Keyless Access System)
FUEL TANK PRESSURE (FTP) SENSOR Removal and Installation
EVAPORATIVE EMISSION (EVAP) CANISTER Removal and Installation
EVAPORATIVE EMISSION (EVAP) CANISTER VENT SHUT VALVE Removal and Installation
