VTEC System Description - Control

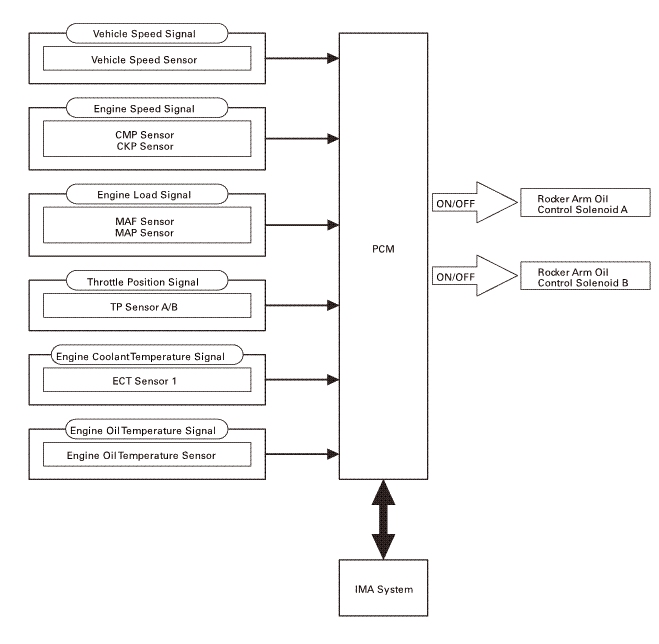

Based on the vehicle speed signal, engine speed signal, engine load signal, throttle position signal, engine coolant temperature signal, and engine oil temperature signal sent from various sensors, the powertrain control module (PCM) controls the ON/OFF of the rocker arm oil control solenoid.

Courtesy of HONDA, U.S.A., INC.
