Block and Piston Inspection: Installation

Piston/Connecting Rod Assembly

Courtesy of HONDA, U.S.A., INC.

1. Remove the connecting rod caps, then check that the bearing is securely in place.

2. Apply new engine oil to the piston, inside of the ring compressor, and the cylinder bore, then attach the ring compressor to the piston/connecting rod assembly.

3. Position the mark (A) to face the cam chain side of the engine block.

Courtesy of HONDA, U.S.A., INC.

4. Position the piston/connecting rod assembly in the cylinder, and tap it in using the wooden handle of a hammer (A). Push down on the ring compressor (B) to prevent the rings from expanding before entering the cylinder bore.

5. Stop after the ring compressor pops free, and check the connecting rod-to-rod journal alignment before pushing the piston into place.

Crankshaft Assembly

Courtesy of HONDA, U.S.A., INC.

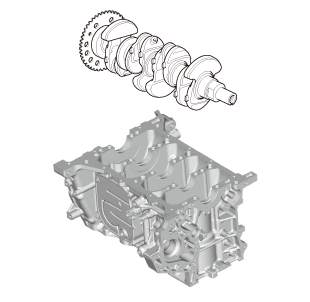

1. Hold the crankshaft so rod journal No. 2 and rod journal No. 3 are straight up, and lower the crankshaft into the engine block.

Main Bearing Clearance - Inspection

1. Clean each main journal and bearing half with a clean shop towel.

Courtesy of HONDA, U.S.A., INC.

2. Place one strip of plastigage across each main journal.

3. Reinstall the bearings and the lower block, then torque the bolts to 25 N.m (2.5 kgf.m, 18 lbf.ft) + 40° in the proper sequence.

NOTE:

Apply new engine oil to the bolt threads and flanges.
Do not rotate the crankshaft during inspection.

4. Remove the lower block and the bearings again, and measure the widest part of the plastigage.

Main Bearing-to-Journal Oil Clearance
Standard (New):	0.018-0.036 mm (0.00071-0.00142 in)
Service Limit:	0.50 mm (0.00197 in)

5. If the plastigage measures too wide or too narrow, remove the crankshaft, and remove the upper half of the bearing. Install a new, complete bearing with the appropriate color code(s), and recheck the clearance. Do not file, shim, or scrape the bearings or the caps to adjust clearance.

6. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the color listed above or below the current one), and check again. If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft, and start over.

Crankshaft Bearing Selection

Courtesy of HONDA, U.S.A., INC.

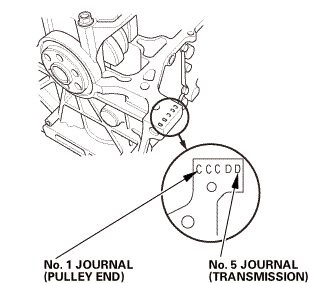

1. Numbers, letters, or bars have been stamped on the end of the engine block as a code for the size of each of the five main journal bores. Write down the crank bore codes. If you cannot read the codes because of accumulated dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

Courtesy of HONDA, U.S.A., INC.

2. The main journal codes are stamped on the crankshaft.

Courtesy of HONDA, U.S.A., INC.

3. Use the block bore codes and the main journal codes to select the appropriate replacement bearings from the following table.

NOTE:

Color code is on the edge of the bearing.
When using bearing halves of different colors, it does not matter which color is used in the top or bottom.

Connecting Rod Bearing Clearance - Inspection

1. Place plastigage across the rod journal.

Courtesy of HONDA, U.S.A., INC.

2. Reinstall the bearing half and the connecting rod cap, then torque the bolts to 10 N.m (1.0 kgf.m, 7 lbf.ft) + 90 ° using a commercially available torque angle gauge.

NOTE:

Apply new engine oil to the bolt threads and flanges.
Do not rotate the crankshaft during inspection.

3. Remove the connecting rod cap and the bearing half and measure the widest part of the plastigage.

Connecting Rod Bearing-to-Journal Oil Clearance
Standard (New):	0.026-0.044 mm (0.00102- 0.00173 in)
Service Limit:	0.050 mm (0.00197 in)

4. If the plastigage measures too wide or too narrow, remove the connecting rod cap and the upper half of the bearing. Install a new, complete bearing with the appropriate color code(s), and recheck the clearance. Do not file, shim, or scrape the bearings or the caps to adjust clearance.

5. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the color listed above or below the current one), and check the clearance again. If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft, and start over.

Connecting Rod Bearing Selection

Courtesy of HONDA, U.S.A., INC.

1. Inspect each connecting rod for cracks and heat damage

2. Each connecting rod has a tolerance ranges from 0 to 0.024 mm (0.00095 in), in 0.006 mm (0.00024 in) increments, depending on the size of its big end bore. It is then stamped with a number (1, 2, 3, or 4) indicating the range. You may find any combination of numbers in any engine. (Half the number is stamped on the connecting rod, the other half is on the rod cap.) If you cannot read the code because of an accumulation of oil and varnish, do not scrub it with a wire brush or scraper. Clean it only with solvent or detergent.

Big End Bore Size:

43.0 mm (1.693 in)

Courtesy of HONDA, U.S.A., INC.

3. The connecting rod journal codes are stamped on the crankshaft.

Courtesy of HONDA, U.S.A., INC.

4. Use the big end bore codes and rod journal codes to select the appropriate replacement bearings from the following table.

NOTE:

Color code is on the edge of the bearing.
When using bearing halves of different colors, it does not matter which color is used in the top or bottom.

Connecting Rod Bolt - Inspection

Courtesy of HONDA, U.S.A., INC.

1. Measure the diameter of each connecting rod bolt at point A and point B.

2. Calculate the difference in diameter between point A and point B.

Point A - Point B = Difference in Diameter
Difference in Diameter
Specification:	0-0.05 mm (0-0.0020 in)

3. If the difference in diameter is out of specification, replace the connecting rod bolt.

Connecting Rod Caps/Bearing Halves

Courtesy of HONDA, U.S.A., INC.

1. Install the bearing halves (A) in the connecting rods.

2. Apply new engine oil to the threads of the connecting rod bolts.

3. Seat the rod journals into connecting rod No. 1 and connecting rod No. 4. Line up the mark (B) on the connecting rod and the bearing cap (C).

4. Install the bearing caps and the bolts finger-tight.

5. Rotate the crankshaft clockwise, and seat the journals into connecting rod No. 2 and connecting rod No. 3. Line up the mark on the connecting rod and the bearing cap.

6. Install the bearing caps and the bolts finger-tight.

Courtesy of HONDA, U.S.A., INC.

7. Torque the connecting rod bolts to 10 N.m (1.0 kgf.m, 7 lbf.ft).

8. Tighten the connecting rod bolts an additional 90°.

NOTE: Remove the connecting rod bolt if you tightened it beyond the specified angle, inspect the connecting rod bolts. Do not loosen it back to the specified angle.

Crankshaft Oil Seal Transmission Side

Courtesy of HONDA, U.S.A., INC.

1. Clean and dry the crankshaft oil seal housing.

2. Apply a light coat of new engine oil to the lip of the crankshaft oil seal.

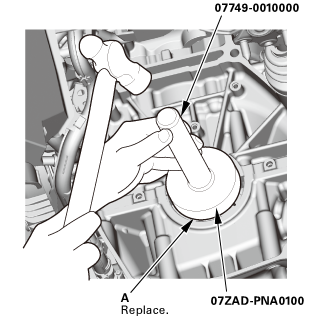

3. Use the driver handle, 15 x 135L, and the oil seal driver attachment, 96 mm, to drive a new crankshaft oil seal (A) squarely into the block to the specified installed height.

Courtesy of HONDA, U.S.A., INC.

4. Measure the distance between the cylinder block (A) and the oil seal (B).

Oil Seal Installed Height:

0.2-1.2 mm (0.008-0.047 in)

Crankshaft Bearing Caps/Bearing Halves

Courtesy of HONDA, U.S.A., INC.

1. Remove all of the old liquid gasket from the bearing cap mating surfaces the bolts, and the bolt holes.

2. Clean and dry the bearing cap mating surfaces.

3. Apply liquid gasket (P/N 08717-0004 or 08718-0009) to the engine block mating surface of the bearing cap bridge/No. 5 bearing cap. Install the component within 5 minutes of applying the liquid gasket.

NOTE:

Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line (A).
If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

Fig 1: Bearing Cap Bridge Tightening Sequence

Courtesy of HONDA, U.S.A., INC.

4. Put the bearing cap bridge on the engine block.

5. Apply new engine oil to the threads of the bearing cap bridge bolts.

6. Torque the bearing cap bolts in sequence to 25 N.m (2.5 kgf.m, 18 lbf.ft).

Courtesy of HONDA, U.S.A., INC.

7. Tighten the bearing cap bolts an additional 40°.

8. Clean the excess liquid gasket off the engine block.

Engine Oil Pump Assembly

Courtesy of HONDA, U.S.A., INC.

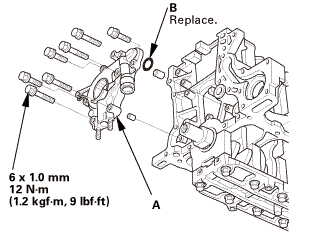

1. Clean the O-ring groove and the mating surface of the engine block.

2. Install the oil pump (A) with a new O-ring (B).

Engine Oil Strainer

Courtesy of HONDA, U.S.A., INC.

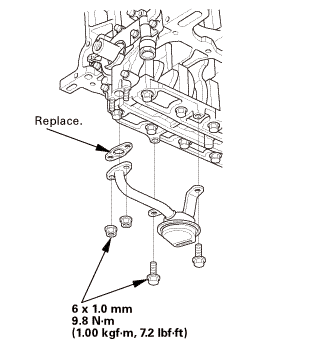

1. Install the oil strainer (A) with a new gasket.

OIL PAN ASSEMBLY

Courtesy of HONDA, U.S.A., INC.

1. Remove all of the old liquid gasket from the oil pan mating surfaces, the bolts, and the bolt holes.

2. Clean and dry the oil pan mating surfaces.

3. Install the dowel pins (A), a new O-ring (B) and the oil pan gasket (C) on the oil pan.

Courtesy of HONDA, U.S.A., INC.

4. Apply liquid gasket (P/N 08717-0004 or 08718-0009) to the engine block mating surface of the oil pan and to the inner threads of the bolt holes. Install the component within 5 minutes of applying the liquid gasket.

NOTE:

Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line (A).
Apply a 5.0 mm (0.197 in) diameter bead of liquid gasket to the shaded area (B).
Apply a 3.0 mm (0.118 in) diameter bead of liquid gasket to the broken line (C).
If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

Courtesy of HONDA, U.S.A., INC.

5. Install the oil pan (B) with new O-rings (C).

NOTE: Raise the oil pan carefully not to damage IMA motor (resolver stator).

6. Tighten the bolts in three steps. Wipe off the excess liquid gasket from the crankshaft pulley end and the flywheel.

Specified Torque
(1):	24 N.m (2.4 kgf.m, 17 lbf.ft)
(2) - (13):	12 N.m (1.2 kgf.m, 8.7 lbf.ft)

Set The Crankshaft to Top Dead Center

Courtesy of HONDA, U.S.A., INC.

1. Set the crankshaft to top dead center (TDC). Align the TDC mark (A) on the crankshaft sprocket with the pointer (B) on the oil pump.

Set the No. 1 Piston at Top Dead Center (Without Cam Chain Case/Oil Pump)

Courtesy of HONDA, U.S.A., INC.

1. Set the camshaft TDC. The "UP" mark (A) on the camshaft sprocket should be at the top, and the TDC grooves (B) on the camshaft sprocket should line up with the top edge of the head.

Cylinder Head Assembly

1. Clean the cylinder head and the engine block surface.

Courtesy of HONDA, U.S.A., INC.

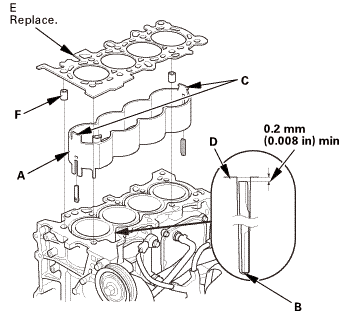

2. Install the cooling control spacer (A) in the engine block whenever the engine block is replaced.

3. Check the play of the cooling control spacer. If there is play, replace the cooling control spacer.

NOTE:

Letting a cooling control spacer contact a water jacket base (B).
The cooling control spacer upper end portions (C) and the clearance of the cylinder block end face (D) being more than 0.2 mm.

4. Install the new cylinder head gasket (E) and the dowel pins (F) on the engine block. Always use a new cylinder head gasket.

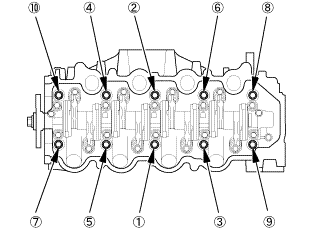

Fig 2: Cylinder Head Bolt Tightening Sequence

Courtesy of HONDA, U.S.A., INC.

5. Install the cylinder head on the engine block.

6. Apply new engine oil to the threads and under the bolt heads of all cylinder head bolts.

7. Torque the cylinder head bolts in sequence to 29 N•m (3.0 kgf•m, 21 lbf•ft) with a beam-type torque wrench if possible. When using a preset-click-type torque wrench, be sure to tighten slowly and do not overtighten. If a bolt makes any noise while you are torquing it, loosen the bolt and retighten it from the first step.

Courtesy of HONDA, U.S.A., INC.

8. Tighten all cylinder head bolts an additional 130 °.

Cam Chain

Courtesy of HONDA, U.S.A., INC.

1. Install the cam chain on the crankshaft sprocket with the colored piece (A) aligned with the TDC mark (B) on the crankshaft sprocket, then install the crankshaft sprocket with the key (C) to the crankshaft.

Courtesy of HONDA, U.S.A., INC.

2. Install the cam chain on the camshaft sprocket with the pointer (A) aligned with the center of the two colored pieces (B).

Cam Chain Tensioner and Guide

Courtesy of HONDA, U.S.A., INC.

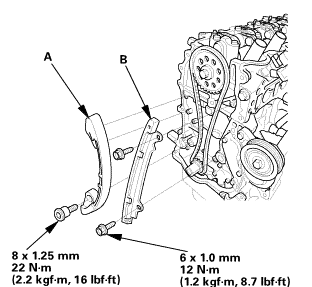

1. Install the cam chain tensioner (A) and the cam chain guide (B).

Cam Chain Tensioner Slider

Courtesy of HONDA, U.S.A., INC.

1. Install the cam chain tensioner slider, and loosely install the bolt.

Courtesy of HONDA, U.S.A., INC.

2. Apply new engine oil to the sliding surface of the cam chain tensioner slider (A).

3. Rotate the cam chain tensioner slider clockwise to compress the cam chain tensioner, and install the remaining bolt, then tighten the bolts to the specified torque.

Cam Chain Case

Courtesy of HONDA, U.S.A., INC.

1. Remove all of the old liquid gasket from the cam chain case mating surfaces, the bolts, and the bolt holes.

2. Clean and dry the cam chain case mating surfaces.

3. Apply liquid gasket (P/N 08717-0004 or 08718-0009) to the cylinder head and the engine block mating surface of the chain case and to the inside edge of the bolt holes. Install the component within 5 minutes of applying the liquid gasket.

NOTE:

Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line (A).
Apply a 3.0 mm (0.118 in) diameter bead of liquid gasket to the upper surface contact areas of the engine block (B).
If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

Courtesy of HONDA, U.S.A., INC.

4. Apply liquid gasket (P/N 08717-0004 or 08718-0009) to the oil pan mating surface of the chain case and to the inside edge of the bolt holes. Install the component within 5 minutes of applying the liquid gasket.

NOTE:

Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line (A).
Apply a 5.0 mm (0.197 in) diameter bead of liquid gasket to the shaded area (B).
If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

Courtesy of HONDA, U.S.A., INC.

5. Set the edge of the chain case (A) on the edge of the oil pan (B), then install the chain case on the engine block (C).

NOTE:

When installing the chain case, do not slide the bottom surface onto the oil pan mounting surface.
Wait at least 30 minutes before filling the engine with oil.
Do not run the engine for at least 3 hours after installing the chain case.

Courtesy of HONDA, U.S.A., INC.

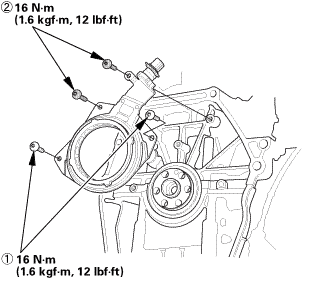

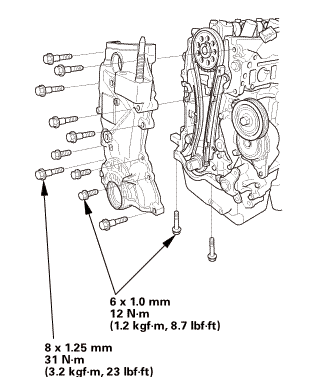

6. Tighten the chain case mounting bolts. Wipe off the excess liquid gasket from the oil pan and the chain case mating area.

Crankshaft Pulley

Courtesy of HONDA, U.S.A., INC.

1. Clean the crankshaft pulley (A), the crankshaft (B), the bolt (C), and the washer (D).

2. Lubricate with new engine oil as shown.

3. Install the crankshaft pulley.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

When a new crankshaft or a new pulley bolt is installed.

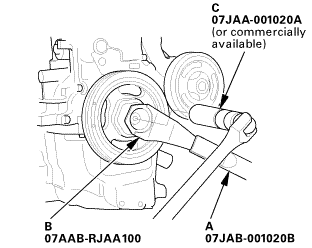

4. Hold the pulley with the holder handle (A) and the crankshaft pulley holder (B), torque the bolt to 177 N.m (18.0 kgf.m, 130 lbf.ft) with a torque wrench and a socket (C), then remove the bolt.

5. Torque the bolt to 39 N.m (4.0 kgf.m, 29 lbf.ft) with a torque wrench and a socket.

NOTE: Tighten the crankshaft pulley bolt. Do not use an impact wrench.

6. Tighten the bolt an additional 94°.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

When the crankshaft or the pulley bolt is reused.

7. Hold the pulley with the holder handle (A) and the crankshaft pulley holder (B), then torque the bolt to 37 N.m (3.8 kgf.m, 27 lbf.ft) with a torque wrench and a socket (C).

NOTE: Tighten the crankshaft pulley bolt. Do not use an impact wrench.

8. Tighten the bolt an additional 90 °.

Cylinder Head Cover and/or Packing

Courtesy of HONDA, U.S.A., INC.

1. Check the spark plug seals (A) for damage. If the seal is damaged, replace it.

2. Thoroughly clean the head cover gasket (B) and the groove.

NOTE: Check and, if necessary, replace the head cover gasket.

3. Install the head cover gasket in the groove of the cylinder head cover (C).

4. Make sure the head cover gasket is evenly seated securely.

5. Remove the old liquid gasket from the chain case.

6. Clean the head cover contacting surfaces with a shop towel.

Courtesy of HONDA, U.S.A., INC.

7. Apply liquid gasket (P/N 08718-0004 or 08718-0009) to the chain case contact areas (A). Install the component within 5 minutes of applying the liquid gasket.

NOTE:

Apply a 3.0 mm (0.118 in) diameter bead of liquid gasket to the chain case contact areas.
If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

Courtesy of HONDA, U.S.A., INC.

8. Place the cylinder head cover (A) on the cylinder head.

9. Slide the cover slightly back and forth to seat the head cover gasket.

NOTE:

Wait at least 30 minutes before filing the engine with oil.
Do not run the engine for at least 3 hours after installing the head cover.

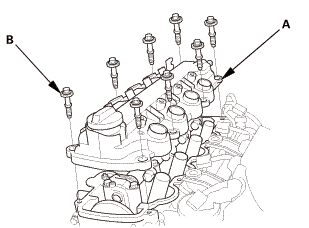

10. Inspect the cover washer (B). Replace any washer that is damaged or deteriorated.

Fig 3: Cylinder Head Cover Tightening Sequence

Courtesy of HONDA, U.S.A., INC.

11. Torque the bolts in three steps. In the final step, torque all bolts, in sequence, to 10 N•m (1.0 kgf•m, 7 lbf•ft).

Ignition Coil

Courtesy of HONDA, U.S.A., INC.

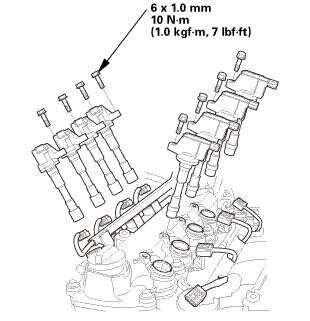

1. Install the ignition coil.

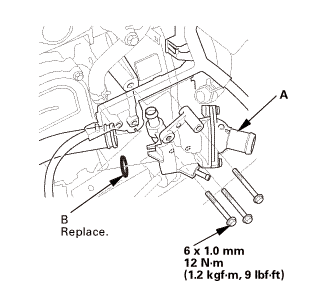

Thermostat Housing Assembly

Courtesy of HONDA, U.S.A., INC.

1. Install the thermostat housing assembly with new O-ring.

Water Pump

Courtesy of HONDA, U.S.A., INC.

1. Inspect and clean the mating surface of the engine block.

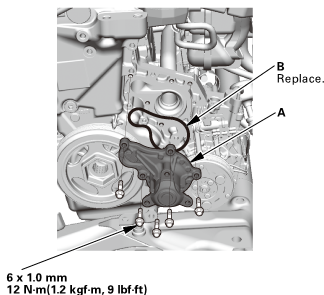

2. Install the water pump (A) with a new O-ring (B).

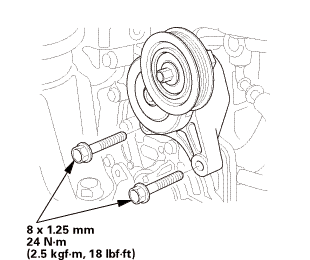

Auto Tensioner Assembly

Courtesy of HONDA, U.S.A., INC.

1. Install the drive belt auto-tensioner.

Water Pump Pulley

Courtesy of HONDA, U.S.A., INC.

1. Install the water pump pulley.

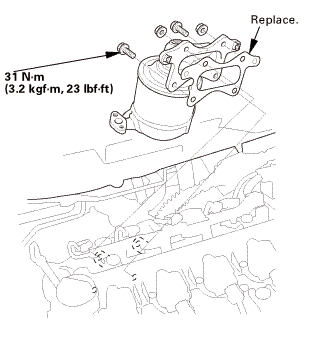

WU-TWC and EGR Pipe Assembly

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Install the warm up TWC assembly with new gasket.

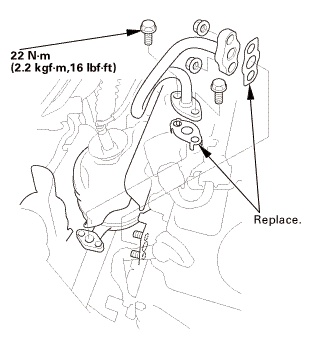

2. Install the EGR pipe with new gaskets.

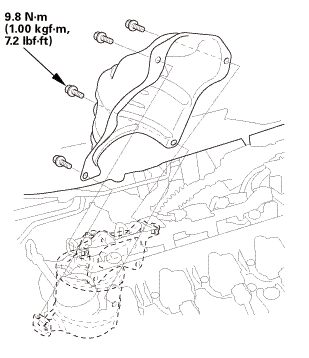

Exhaust Chamber Cover

Courtesy of HONDA, U.S.A., INC.

1. Install the exhaust chamber cover.

A/F Sensor

Courtesy of HONDA, U.S.A., INC.

1. Install the A/F sensor.

Intake Manifold/Chamber and Throttle Body Assembly

Courtesy of HONDA, U.S.A., INC.

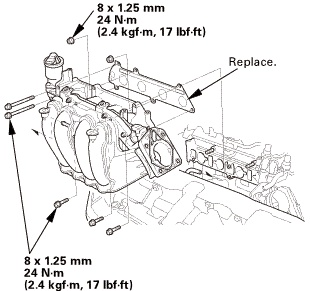

1. Install the intake manifold/chamber assembly with the throttle body and the new gasket.

Intake Manifold bracket

Courtesy of HONDA, U.S.A., INC.

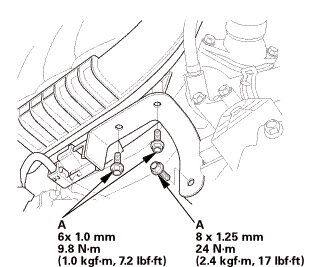

1. Install the intake manifold bracket.

IMA Motor Rotor Position Sensor

Fig 4: IMA Motor Rotor Position Sensor Tightening Sequence With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Install the IMA motor rotor position sensor in the numbered sequence shown.

IMA Motor Housing

Courtesy of HONDA, U.S.A., INC.

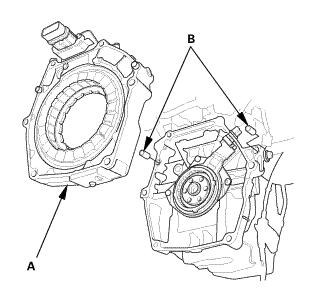

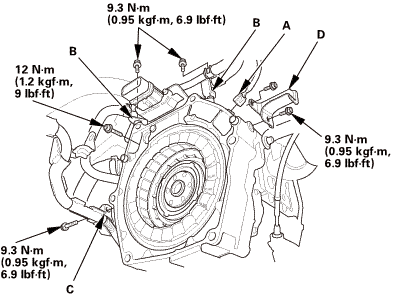

1. Install the IMA motor housing (A).

NOTE: Set dowel pins (B) to the engine before installing the motor stator on the engine.

2. Install the connector (A), the stays (B), the harness clamp (C), and the heat shield (D).

Courtesy of HONDA, U.S.A., INC.

IMA Motor Rotor

Courtesy of HONDA, U.S.A., INC.

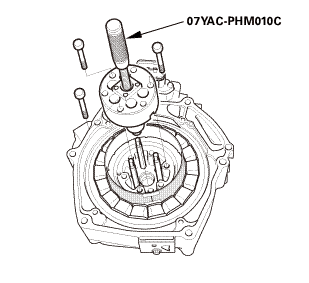

1. Attach the rotor puller on the IMA motor rotor.

2. Tape together end to end two plastic sheets (300 long by 200 wide by 0.2 mm thick) and install them around the outside of the rotor.

3. Install the IMA motor rotor to the motor stator.

NOTE:

Before installing the rotor, make sure the handle of rotor puller is fully turned in clockwise.
Slowly turn the handle of the rotor puller counterclockwise to insert the rotor into the stator. The rotor is drawn into the stator by magnetic force.

4. Slowly turn the handle of the rotor puller to lower and install IMA motor rotor into the motor stator.

Courtesy of HONDA, U.S.A., INC.

5. Remove the rotor puller.

Courtesy of HONDA, U.S.A., INC.

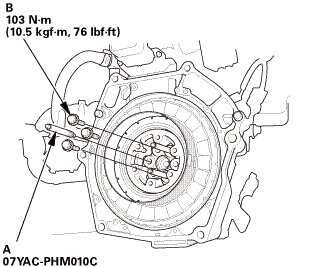

6. Remove the rotor puller guide pins (A), then install the remaining three bolts (B).

Courtesy of HONDA, U.S.A., INC.

7. Install three of the six bolts as shown.

8. Remove the plastic film (A).

Drive Plate Assembly

Courtesy of HONDA, U.S.A., INC.

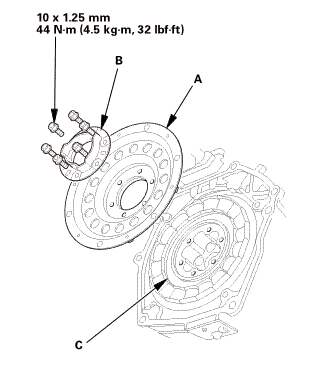

1. Install the drive plate (A) and the flywheel support (B) on the motor rotor (C), and tighten the bolts to the specified torque in a crisscross pattern in at least two or three steps.

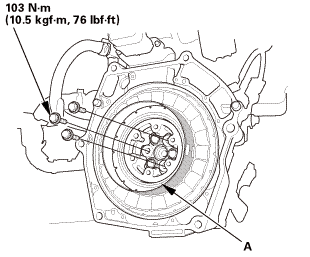

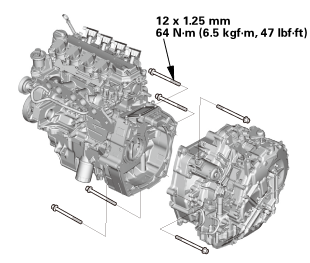

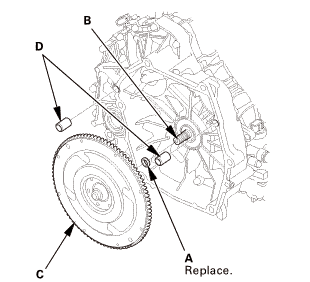

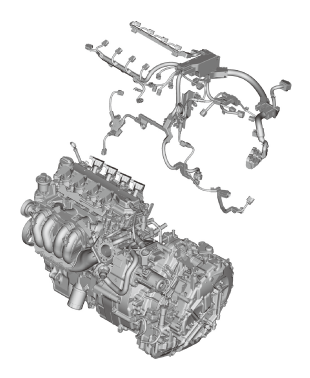

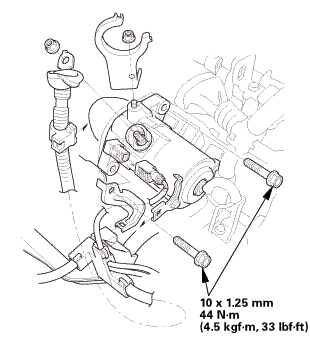

CVT Flywheel
