Block and Piston Inspection: Notes

  Special Tools Required
Image Description/Tool Number
GHH123699Courtesy of HONDA, U.S.A., INC.
Holder Handle 07JAB-001020B
GHH123928Courtesy of HONDA, U.S.A., INC.
Crankshaft Pulley Holder 070AB-RJA0100
GHH123698Courtesy of HONDA, U.S.A., INC.
Socket, 19 mm 07JAA-001020A

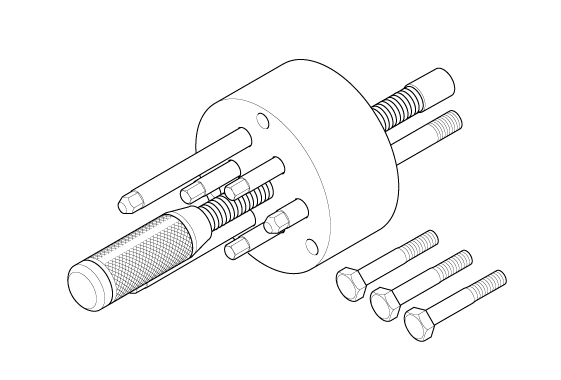

GHH123929Courtesy of HONDA, U.S.A., INC.
Rotor Puller 07YAC-PHM010C
GHH123696Courtesy of HONDA, U.S.A., INC.
O2 Sensor Socket Wrench Snap-on SWR2 or O2 Sensor Wrench Snap-on YA8875, commercially available

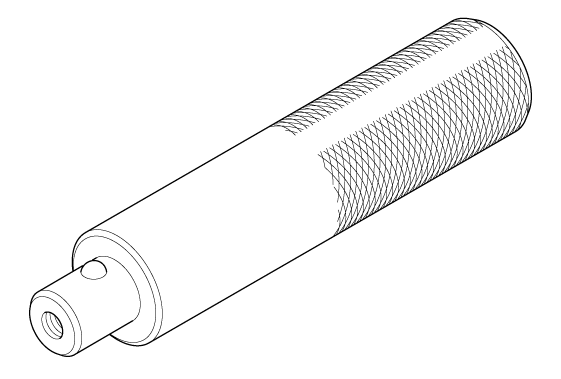

GHH121469Courtesy of HONDA, U.S.A., INC.
Driver Handle, 15 x 135L 07749-0010000
GHH123930Courtesy of HONDA, U.S.A., INC.
Oil Seal Driver Attachment, 96 mm 07ZAD-PNA0100
