Engine Compression Inspection: Installation

Spark Plug Intake Side

Courtesy of HONDA, U.S.A., INC.

1. Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger tight.

2. Tighten the plugs to the specified torque.

Specified Torque:

18 N.m (1.8 kgf.m, 13 lbf.ft)

Ignition Coil Intake Side

Courtesy of HONDA, U.S.A., INC.

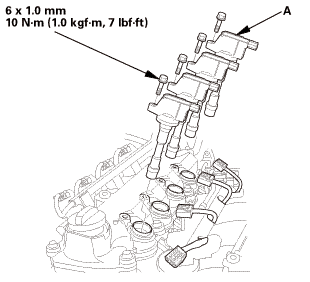

1. Install the four intake side ignition coils (A).

Engine Cover

Courtesy of HONDA, U.S.A., INC.

1. Install the engine cover.

HDS DLC - Connection

Courtesy of HONDA, U.S.A., INC.

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

2. Turn the ignition switch to ON (II)

3. Make sure the HDS communicates with vehicle. If it does not communicate, go to the DLC circuit troubleshooting.

All Injectors Stop

1. Select PGM-FI ECU reset in the PGM-FI INSPECTION menu with the HDS to cancel ALL INJECTORS STOP and STARTER TEST.
