VTEC Rocker Arm Test: Removal

WARM UP THE ENGINE - RUN FOR 5 MINUTES

1. Start the engine, and let it run for 5 minutes.

2. Turn the ignition switch to LOCK (0).

Engine Cover

Courtesy of HONDA, U.S.A., INC.

1. Remove the engine cover.

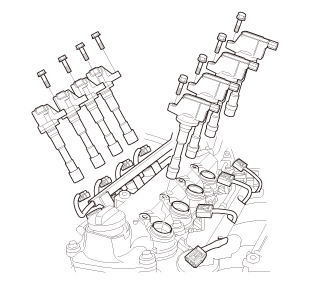

Ignition Coil

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connectors.

2. Remove the ignition coils.

Cylinder Head Cover Peripheral Assembly

Courtesy of HONDA, U.S.A., INC.

1. Remove the harness holder (A).

2. Disconnect the breather hose (B).

Cylinder Head Cover and/or Packing

Courtesy of HONDA, U.S.A., INC.

1. Remove the cylinder head cover.
