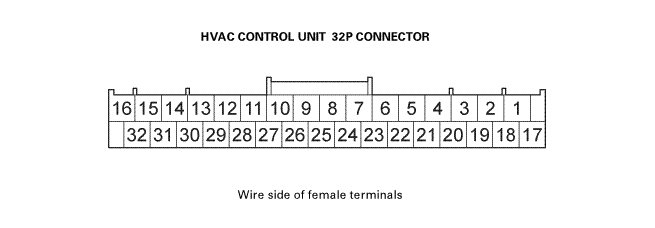

HVAC Control Unit Connector for Inputs and Outputs
HVAC
HVAC Control Unit Connector for Inputs and Outputs

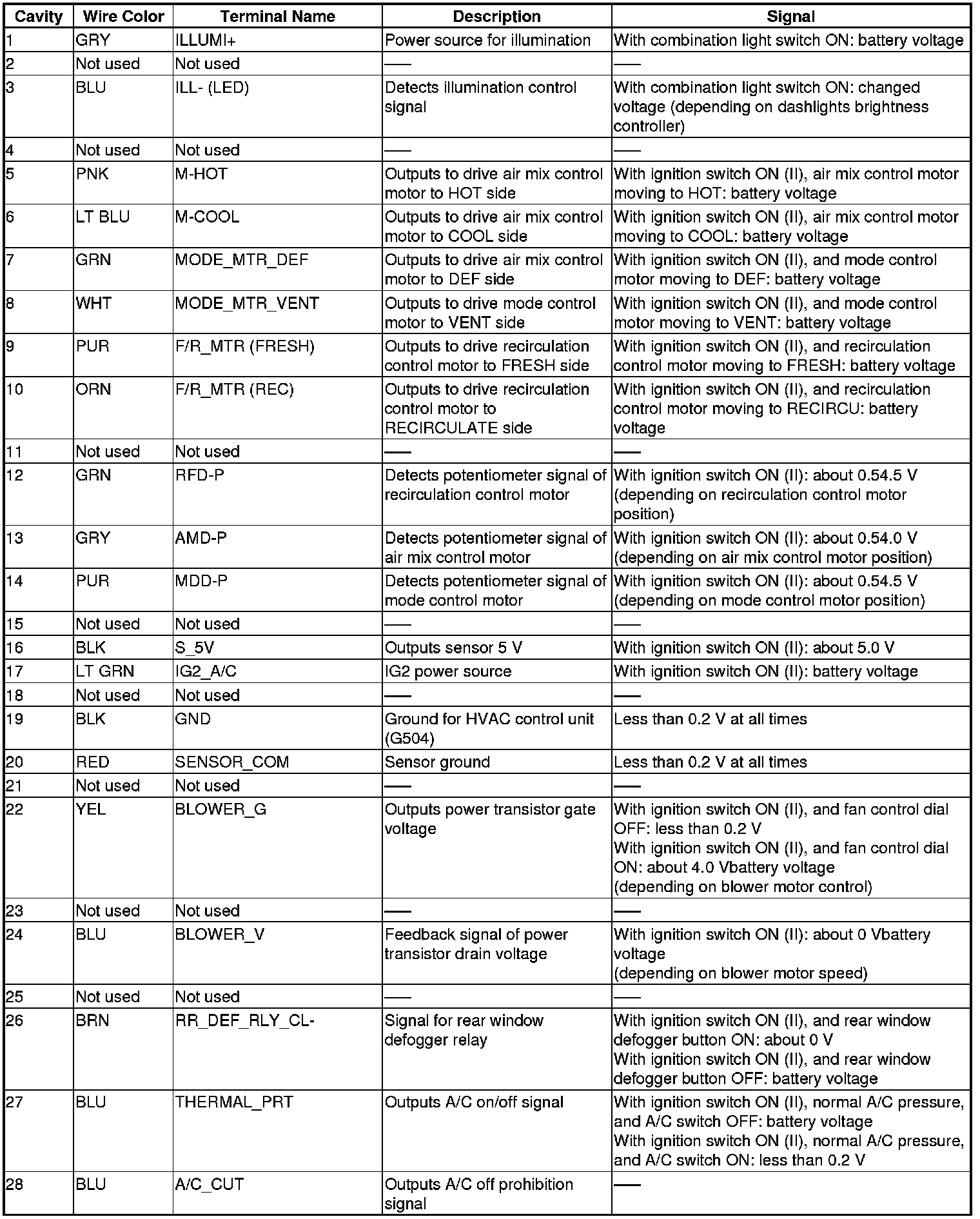

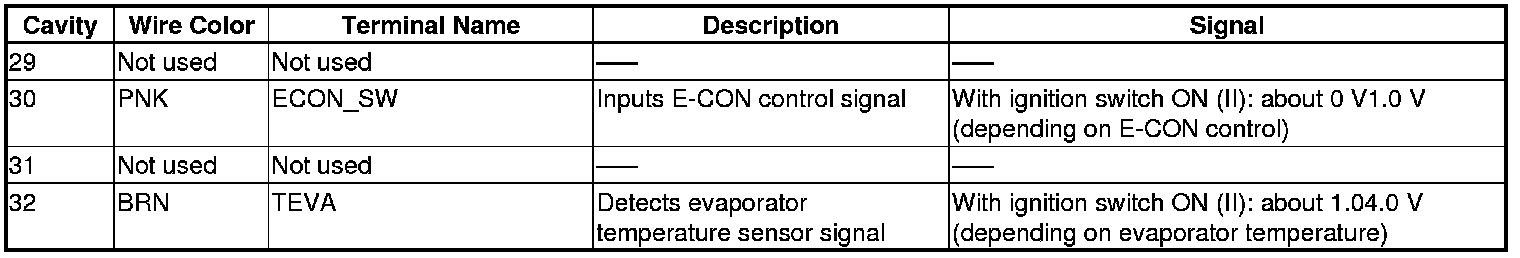

HVAC Control Unit Inputs and Outputs
