Power Transistor HVAC: Service and Repair

Blower Power Transistor Removal and Installation

Removal

1. Glove Box





1. Remove the bolts (A).

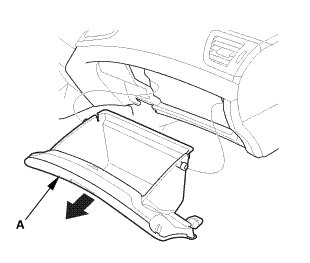

2. Remove the glove box (A).

2. Passenger's Heater Duct

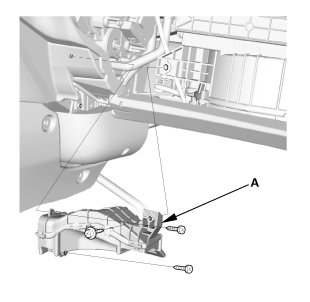

1. Remove the passenger's heater duct (A).

3. Power Transistor





1. Disconnect the connector (A).

2. Remove the power transistor (B).

Installation

1. Power Transistor





1. Install the power transistor (A).

2. Connect the connector (B).

2. Passenger's Heater Duct





1. Install the passenger's heater duct (A).

3. Glove Box

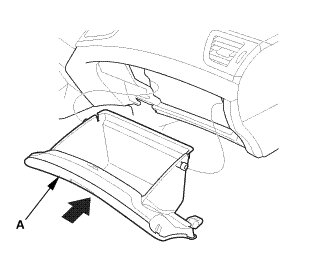

1. Install the glove box (A).





2. Install the bolts (A).
