Refrigerant Oil: Service and Repair

A/C Refrigerant Oil Replacement

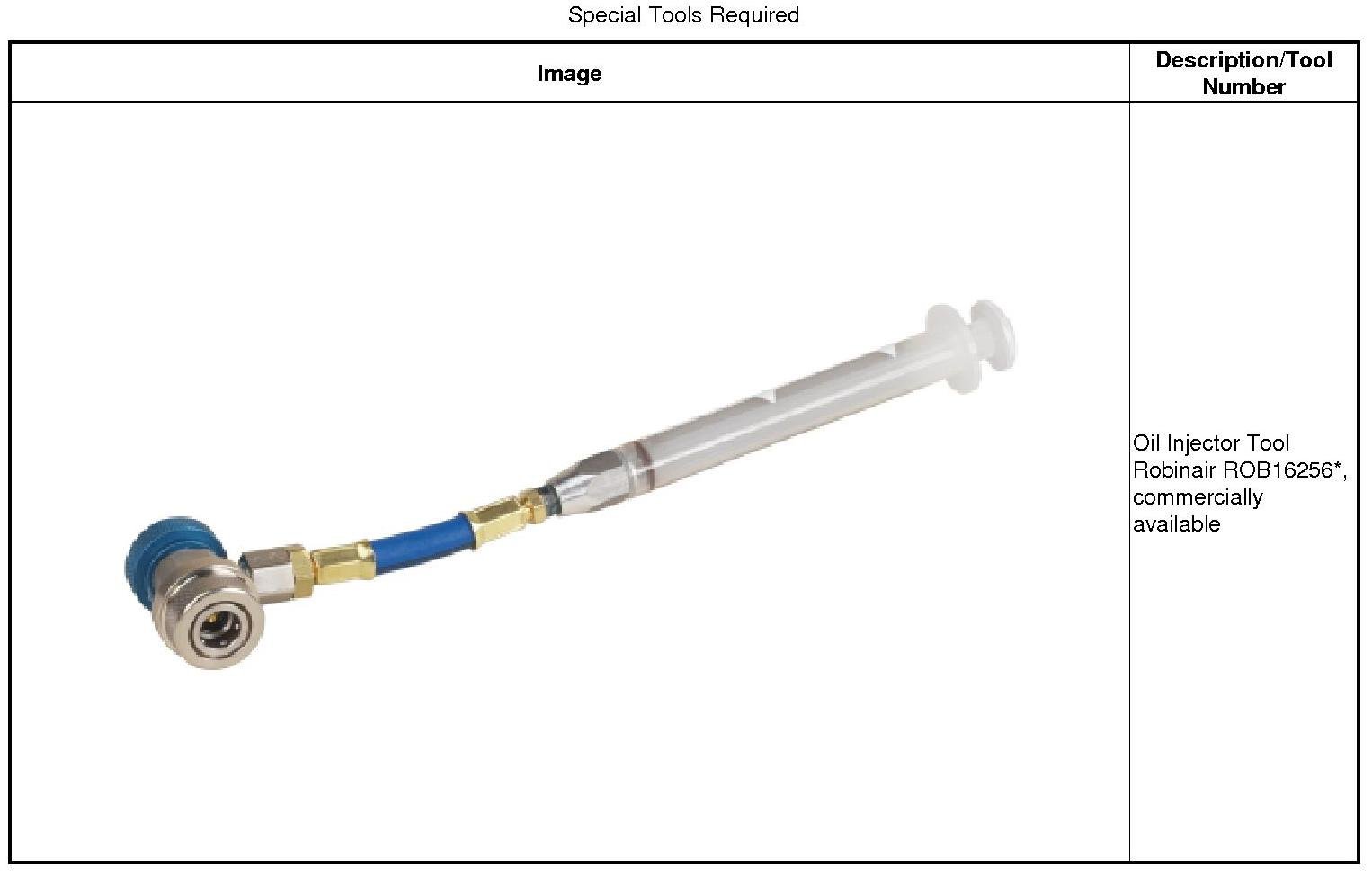

*Available through the Honda Tool and Equipment Program; call 888-424-6857

Replacement

1. A/C Refrigerant Oil - Replacement

Recommended PAG oil: SP-10

P/N 38897-P13-A01AH: 120 mL (4 floz)

It is important to have the correct amount of refrigerant oil in the A/C system to ensure proper lubrication of the A/C compressor. Too little oil damages the A/C compressor; too much oil reduces the cooling capacity of the system, and can produce high vent temperatures.
* To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
* Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
* Do not spill the refrigerant oil on the vehicle; it may damage the paint; if it gets on the paint, wash it off immediately.

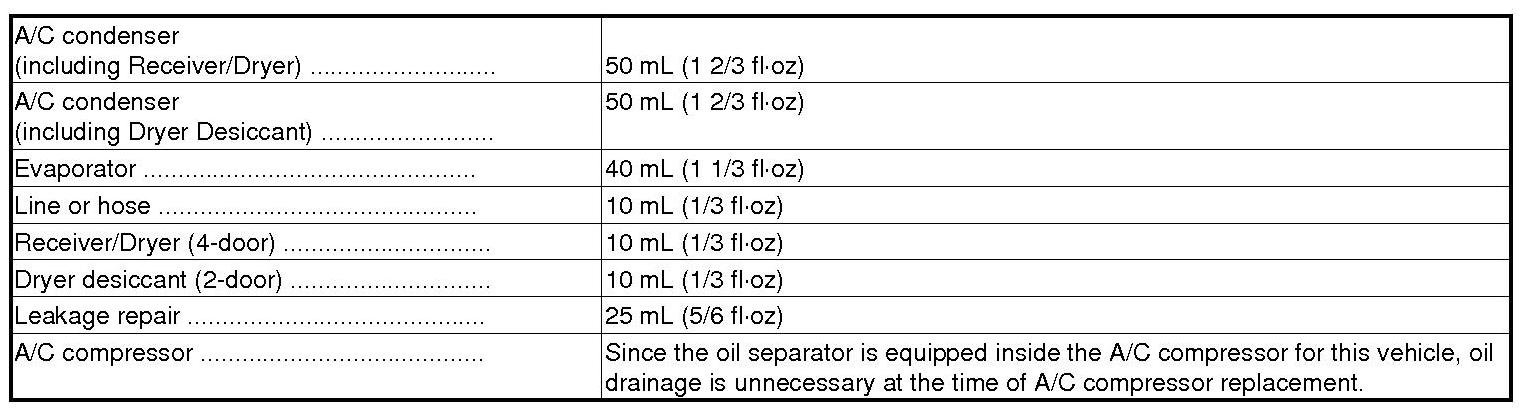

Add the recommended refrigerant oil in the amount listed if you replace any of the following parts.
