CMP Sensor B Removal and Installation

CMP Sensor B Removal and Installation

Removal

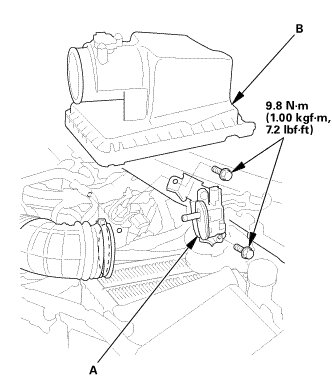

1. EVAP Canister Purge Valve and Bracket





1. Remove the air cleaner upper cover (A).

2. Remove the EVAP canister purge valve and bracket (B).

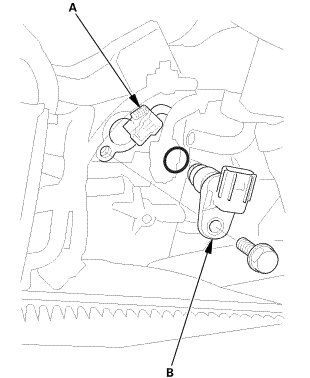

2. CMP Sensor B





1. Disconnect the connector (A).

2. Remove CMP sensor B.

Installation

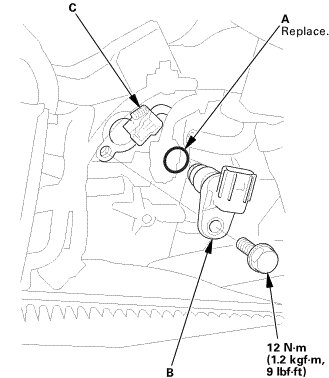

1. CMP Sensor B





1. Install CMP sensor B with a new O-ring (A).

2. Connect the connector (C).

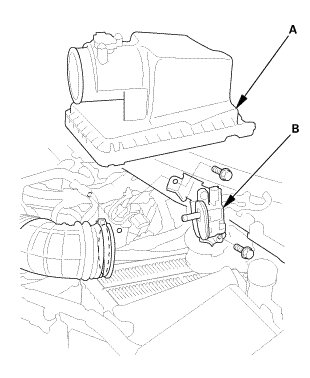

2. EVAP Canister Purge Valve and Bracket





1. Install the EVAP canister purge valve and bracket (A).

2. Install the air cleaner upper cover (B).
