Secondary HO2S Replacement

Secondary HO2S Replacement

Special Tools Required

- O2 Sensor Wrench Snap-on S6176 or equivalent, commercially available

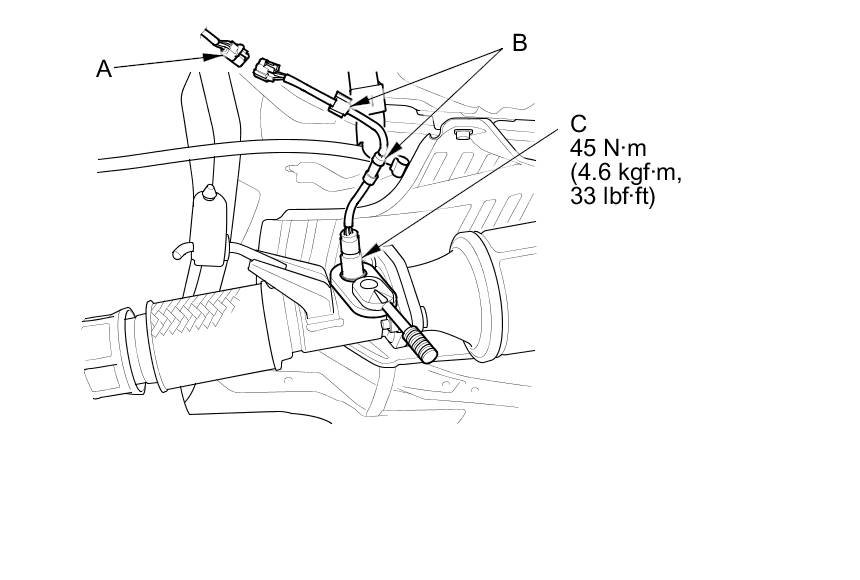

1. Disconnect secondary HO2S 4P connector (A) and these clips (B), then remove the secondary HO2S (C).





2. Install the parts in the reverse order of removal.
