KX Mexico Models

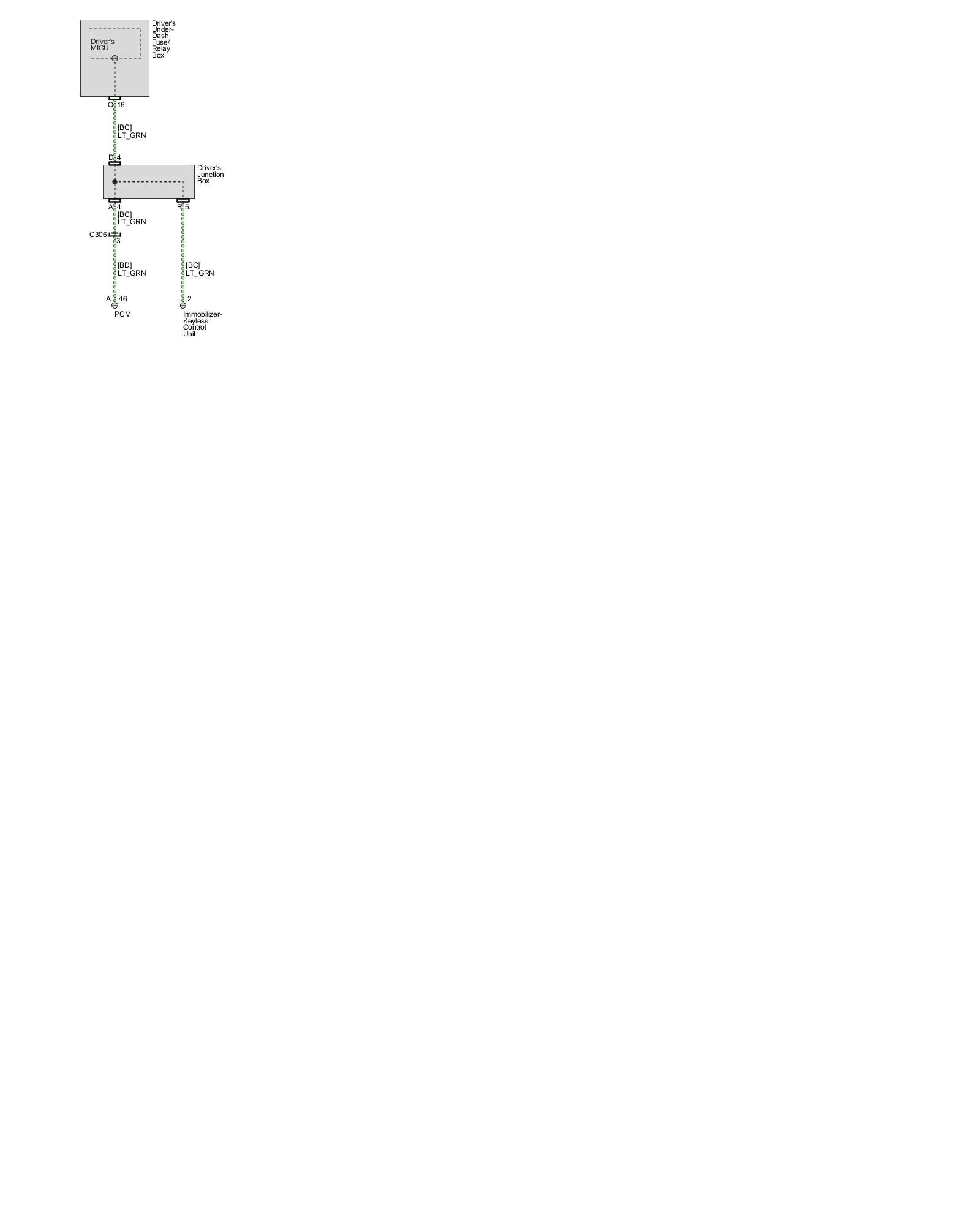

Body - Multiplex Integrated Control System - S-NET Communication Line

KX Mexico Emissions, 5-door EX, TF1(2WD), 5AT Transmission
KX Mexico Emissions, 5-door EX-L, TF1(2WD), 5AT Transmission
KX Mexico Emissions, 5-door EX-L, TF2(4WD), 5AT Transmission
