Tire Pressure Sensor Replacement: Installation

NOTE:
  • Use only wheels that have a "TPMS" stamp (A) on the inside of the aluminum wheels, and the outside of the steel wheels.
  • The vehicle may be equipped with either aluminum wheels, or steel wheels.

Aluminum wheel

Fig 1: Identifying TPMS Stamp On Inside Of Aluminum Wheels
G05959164Courtesy of AMERICAN HONDA MOTOR CO., INC.

Steel wheel

Fig 2: Identifying TPMS Stamp On Outside Of Steel Wheels
G05959165Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. Before installing the tire pressure sensor, clean the mating surfaces on the sensor and the wheel.
  2. Install the tire pressure sensor (A) and the washer (B) to the wheel (C), and tighten the valve stem nut (D) finger tight. Make sure the pressure sensor is resting on the wheel.
    NOTE: Install the tire pressure sensor so that the sensor housing surface (E) does not extend beyond the protrusion (F) on the wheel to prevent the sensor housing from being caught on the bead of the tire when assembling the tire.

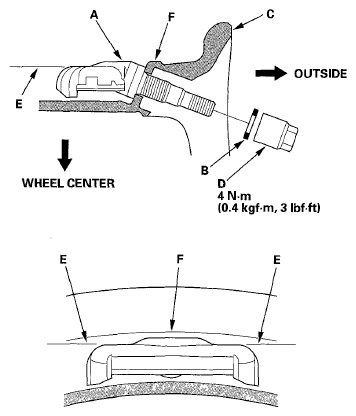

    Fig 3: Tire Pressure Sensor & Valve Stem Nut With Torque Specifications
    G05959166Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Tighten the valve stem nut to the specified torque while holding the tire pressure sensor.
    NOTE:
    • Do not use air or electric impact tools to tighten a valve stem nut.
    • Do not twist the tire pressure sensor to adjust its position with the wheel, as this will damage or deform the valve stem grommet.
  4. Lube the tire bead sparingly with a paste-type tire mounting lubricant, and position the wheel so the tire machine (A) and tire iron (B) are next to the valve stem (C) and will move away from it when the machine starts. Then install the tire onto the wheel.
    Fig 4: Identifying Wheel Tire Machine & Tire Iron To Valve Stem
    G00492816Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. With a dry air source, inflate tie tire to 300 kPa (3.1 kgf/cm2 , 44 psi) to seat the tire bead to the rim, then adjust the tire pressure (see WHEEL ALIGNMENT ), and install the valve stem cap.
    NOTE: Make sure the tire bead is seated on both sides of the rim uniformly.
  6. Check and adjust the wheel balance, then install the wheels on the vehicle.
  7. Lower the vehicle. Torque the wheel nuts to specifications (see KNUCKLE/HUB REPLACEMENT ).
  8. Connect the HDS, and memorize the pressure sensor IDs using the TPMS tool (see MEMORIZING THE TIRE PRESSURE SENSOR ID  ).
