With Security
- Open the hood.
- Remove the front grille cover (see FRONT GRILLE COVER REPLACEMENT
).

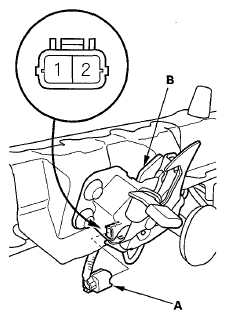

- Disconnect the 2P connector (A) from the hood switch (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for continuity between the terminals.
- There should be continuity between terminals No. 1 and No. 2 when the hood is opened (lever released).
- There should be no continuity between terminals No. 1 and No. 2 when the hood is closed (lever pushed down).
- If the continuity is not as specified, replace the hood latch assembly (see HOOD LATCH REPLACEMENT
).
